Steel H Beam Production Line , Hydraulic Straightening Machine

Description:

Structure of mechanical flange straightening machine simple, with convenient and reliable operation which used for semi-automatic H-beam production line.

Hydraulic type straightening with strong straightening force and high automation which usually used for full automatic H-beam production line.

Straightening and powered roller: nice alloy steel, which are made after heat treating with long lifespan usage.

Hydraulic type straightening machine used for angle distortion straightening of H-beam with large thickness.

Hydraulic cylinder presses from down side to up side, which strong force and high driving torque and with nice straightening efficiency.

Widely used for fire electric furnace, heavy duty steel structure construction, steel bridge, water power industry.

Specially used for H-beam flange distortion straightening, which includes hydraulic and mechanical straightening type.

Specifications:

1. Major technical Parameters

a. Width of the wing board: 150-600 mm

b. Thickness of the wing board: 6-20 mm

c. Min height of the former: 180 mm

d. Power rate of the major motor: 9.7kw

e. Correcting speed: 7800 mm/min

2. Provide goods and compose parts

a. Main frame of correcting machine: base, left-and-right frame, motor, deceleration machine, correcting wheel, press roll, guide roll, correcting vice roll

b. Conveyor roller way: base, roller way and so on

c. Electric control: electric control box

d. Spare parts: switch 2, wrench 1

3. Performance

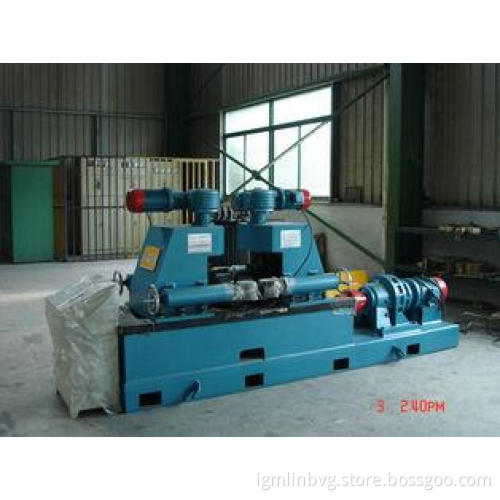

HYJ-20H steel flange correcting machine is specially designed for the correction of the steel flange. The main machine uses the 9.7KW electric motor and pin gear reductor drive characterized by high efficient and high speed. All the correcting rollers are made of high-quality alloy steel. Besides, the machine is put under advanced hot treatment to prevent crackles. All the parts are reinforced to stabilize the correction and realize the long service life.

4. Technical files

a. Using manual of the machine (Include electrical schematic)

b. Shipping list

c. The certification of the machine

d. The basis of drawing of the machine
