Auto H Beam Production Line , High Speed Hydraulic Straight

Auto H Beam Production Line , High Speed Hydraulic Straightener

Quick Detail:

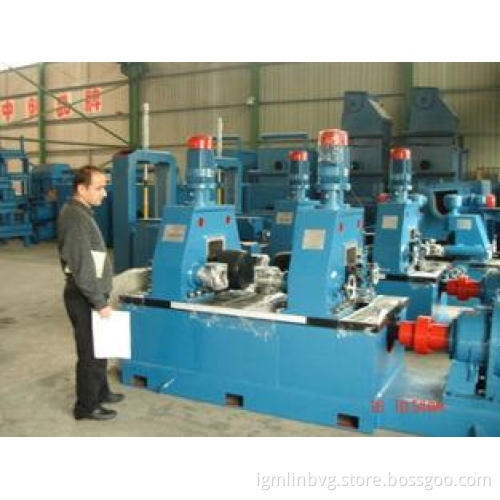

H beam straightening machine used for rectify the welding flange.


Description:

This machine is specially used for the H-beam flange distortion straightening, which includes hydraulic and mechanical straightening type. The structure of mechanical flange straightening machine is simple, with convenient and reliable operation. The hydraulic type straightening has strong straightening force and high automation, which is developed firstly by us. The straightening roller and powered roller is good alloy steel, which are made after heat-treating with long life using.


Specifications:

1. Major technical Parameters

2. Provide goods and compose parts
a. Main frame of correcting machine: base, left-and-right frame, motor,
deceleration machine, press roll, main roll, correcting vice roll.
b. Conveyor roller way: base, roller way and so on.
c. Electric control: electric control box.
d. Spare parts: switch*2, wrench*1.

3. Performance
HYJ-40 H beam straightening machine is specially designed for the correction of the wing board. The main machine uses the 22KW electric motor and pin gear reductor drive characterized by high efficient and high speed. All the correcting rollers are made of high-quality alloy steel. Besides, the machine is put under advanced hot treatment to prevent crackles. All the parts are reinforced to stabilize the correction and realize the long service life.

4. Technical files
a. Using manual of the machine (Include electrical schematic)
b. Shipping list
c. The certification of the machine
d. The basis of drawing of the machine
