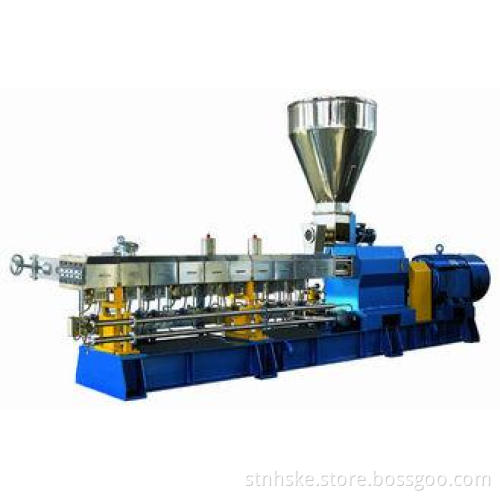

Twin Screw Plastic Pelletizer Machine For Mixing Smelting Extruding
Quick Detail:
1. High efficiency mixing, smelting, extruding
2. Hydraulic screen changer
3. Die face hot cutter system
Description:
TSK parallel twin-screw extruder is a kind of high-efficiency mixing, smelting, extruding equipment. Its core section is composed of “OO” type cylinder and two screws which mesh each other. It also has drive system, control system, feeding system, and to form a kind of special extruding, granulating and shaping processing equipment. With the rotation of the screw stem, the surface of the materials continuously change.
Applications:
The parallel twin screw WPC pelletizing line is mainly used for recycled PVC and wood powder pellets production, the finished pellets are uniform and beautiful, ans widely used in the WPC products, like floor, deck, wall slide, door and etc. This line is easy to install and operation.
Specifications:
|
Model |
Screw dia. (mm) |
L/D |
Motor power (kw) |
Max scew speed (rpm) |
Capacity (kg/h) |
|
TSK50 |
50.5 |
32-52 |
37-45 |
600 |
70-150 |
|
TSK65 |
62.4 |
32-52 |
55-75 |
600 |
140-300 |
|
TSK75 |
71.2 |
32-52 |
90-110 |
500 |
300-400 |
|
TSK95 |
91 |
32-48 |
220-250 |
400 |
500-800 |
