Automatic and high speed CR Steel Coil Slitting Line With 1
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China (Mainland) |
|---|

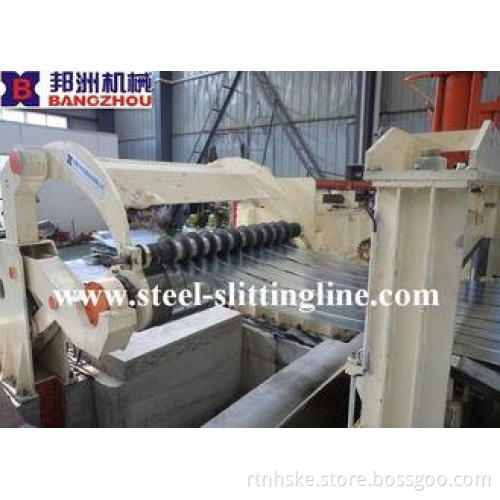

CR Steel Coil Slitting Line With 15T Recoiler, 1250mm Width
Quick Detail:
1) Thickenss: 0.3mm-3mm
2) Width: 500mm-1250mm
3) Capacity: 15T
4) Speed: 0-120m/min
5) Maximum slitting slices: 30 pieces
6) Composed device: uncoiler , slitter, recoiler
Specifictions
| Item | Steel slitting line | |
|
Coil Material Specifications Kind provide the detailed information with the inquiry |
Thickness | 0.3-3mm |
| Coil width | 500-1250mm | |
| Material | PPGI,CRS | |
| Coil weight | 15T | |
| Coil I.D | 480mm-510mm | |
| Coil O.D | 1600MM | |
| Decoiler and Recoiler | Type | Hydraulic&Motorized |
| Coil Width | Max. 1600mm | |
| I.D | 480-510mm | |
| O.D | Max. 1600mm | |
| Capacity | 15T(Max) | |
| Scrap winder I.D | 420mm | |
| Blade Specifications | dimension | 200mmx340mmx15mm |
| material | 6CrW2Si | |
| hardness | HRC58-60 | |
| Slitting line specifications | Line speed | 0-120m/min |
| Power | 380V/50HZ/3 PH | |
| Dimension | 30M(L)x8m(W) | |
| Slitting width tolerance | ≤±0.05mm/2m | |
| Operation workers needed | 1 technician and 2 common workers | |
Main Components of the slitting line
| Hydraulic entry coil car | 1 Unit |
| Hydraulic decoiler | 1 Unit |
| Press and pinch device | 1 Unit |
| Hydraulic head cutter | 1 Unit |
| Side guide device | 1 Unit |
| Slitter | 1 Unit |
| Scrap winder | 1 Unit |
| Tension stand | 1 Unit |
| Recoiler | 1 Unit |
| Hydraulic exit coil car | 1 Units |
Layout of the whole steel coil slitting line
At the dangerous parts, there will be the warning to ask the workers to be careful !
More details about the whole line
Application
It is applied to do the high speed slitting and rewinding for the CRS, Galvanized steel and stainless steel, HRS and so on.
Use in great production factory with high output
Features:
1. Adopt good PLC control system, high degree of automation.
2. Adopt reliable hydraulic system and hydraulic elements.
3. Electronics adopts famous wrld brands,quite reliable.
4. Adopt good mechanical design with high solidity and strength.
