6mm steel coil slitting line with 1600mm steel sheet cutting machine
Quick Detail:
1) Thickenss: 1mm-6mm
2) Width: 550mm-1600mm
3) Capacity: 15T
4) Speed: 0-40m/min
5) Maximum slitting slices: 30 pieces
6) Composed device: uncoiler , slitter, recoiler
Specifications:
|
Application: |
CR/HRC/stainless steel /galvanized and so on |
|
thickness of coil plate: |
1-6mm |
|
width of coil plate: |
1600mm |
|
coil weight: |
15MT(max) |
|
coil I.D: |
Ф470-520mm |
|
coil O.D: |
Ф2000mm |
|
the diameter of slitting blade shaft |
Ф240 |
|
slitting blade: |
Φ240Xφ420X20 |
|
material of slitting blade: |
9CrSi |
|
the hardness of slitting blade: |
HRC58°-60° |
|
recoiler I.D: |
φ508 |
|
power: |
380V/50Hz/3Ph |
|
tolerance of width error: |
≤±0.05mm/2M |
|
line speed |
0-40m/min |
|
area of the whole machine: |
30m(L)x6m(W) |
|
Production orientation |
from left to right |
Composed devices
1. Hydraulic entry coil car
◆The car can move levelly and vertically, which is convenient for putting the steel coils into the de-coiler.
2. Hydraulic de-coiler
◆Supporting the coils and doing uncoiling.
3. Press and straightening machine
◆ It is good for improve the plates' surface and do straightening then guiding the steel plates into next process.
4. Hydraulic cutting machine
◆it is used to make the plates easy to the next process by cutting the head even and also used to make the big coils divide into several small coils.
5. Transition table1
6. Side guide device
◆It uses the vertical rollers of both sides to guide the plates into the slitting machine correctly.
7. Slitting machine
8. Scrap winder
◆It is used to pack and wind the slitting scrap strips.
9. Transition table
10. Pre-dividing tension device
11. Hydraulic recoiler
◆It adopts the hydraulic expand and shrink recoiler shaft to tight the inner hole of coils
◆It uses the hydraulic movable arm with the supporting spacers to ensure the even recoiling quality.
◆It is equipped with the push device to help unload the coils
Related photos of the steel coil slitting line

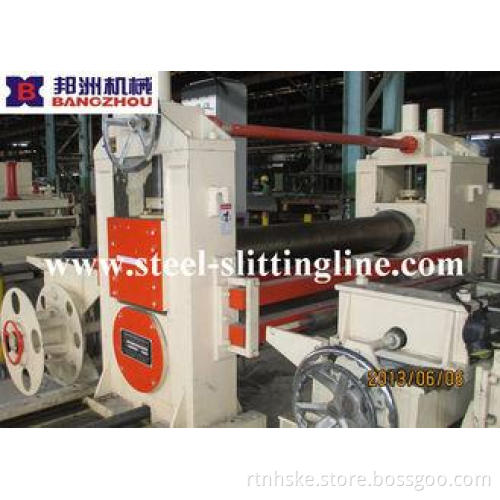

Photo1 before commissioning
Delivery and shipment
1. The whole line needs 3 containers , one 40 OT container and two 40GP containers.
2. From the day we receive the down payment, after 80 days can be finished the production.
3. All the stuffs will be fixed with the containers one by one to provent the damage happen during the journey
4. For the spare parts and the small stuffs, they will be packed in the wooden box or the iron box .
Applications:
ZJX-1-6X1600mm hydraulic slitting line is used for slitting the CR/HRC/stainless steel /galvanized to prepare for the next process.
Competitive Advantage:
- convenient to operate
- accurate precision of shearing
- high ratio of performance to price
- tidy recoiling
