Simple Steel Coil Slitting Line 0.5-2mm x 800mm With Decoil

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Wuxi, China

Product Description

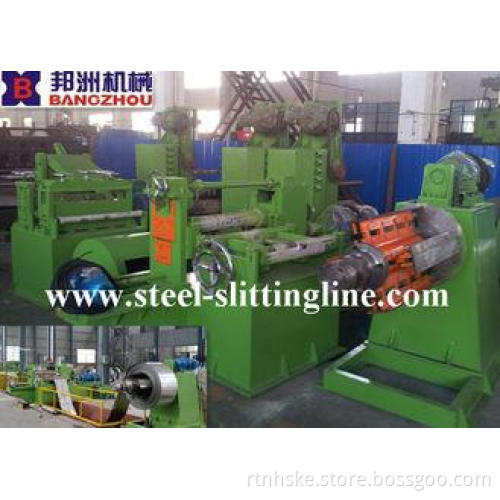

Simple Steel Coil Slitting Line 0.5-2mm x 800mm With Decoiler and Recoiler

Quick details

A. Material: carbon steel, galvernized steel and PPGI

B. Tensile strength: <450Mpa

C. Thickness: 0.5-2mm(Max)

D. Width: 750mm(Max)

E. Speed: 0-30m/min

F. Type: Simple steel coil slitting machine

G. Loading capacity: 5T

Function: This simple steel coil slitting line is used to slit the big coil into small coils by doing the longitudinal shearing for the steel coils. This slitting machine is design for those customer who produce the steel strips for own use. With high cost performance

Specifications

No.	Name		parameters
	Control model		Frequency conversion control
	material		Steel tape
	thickness	mm	0. 5-2
	Width(max)	mm	800
	Coil ID	mm	480-520
	Coil OD	mm	1200
	Weight	T	5
	Blade specification	mm	Φ120×Φ320×10
	Material of blade		9CrSi
	Line speed	m/min	≤30
	Power of decoiler		5.5
	Power of slitting machine	kw	11
	Power of recoiler	kw	22
	Quantity of strips can slit (Max)	strips	10

Composed device

1. Decoiler

** The motor will drive it running and help the decoiler to feed the material to the next device

** It can expand and shrink to meet the different coil Inner diameter's requirement.

** This steel slitting line is design with the mecanical decoiler which run by motor, expand and shrink by manually

** Capacity: 5T(Max)

2. Slitter

** At the entry part, it is equipped with the side guide device to prevent the sheets not directly go into the slitter

** Slitting machine is designed with the bracket movable structure to make it easy to adjust the slit width

** The slitter should be equipped with the blades, shim , bakelite plates or the rubber band to make the slitting possible

**This slitting machine is the core of the whole steel slitting line

3. Scrap winder

** It is designed with the barrel-type to receive the waste materials on booth side

** And a shaft with the 5.5 KW motor to wind the material with speed adjustment

4. Tension stand

** Two shafts will be equipped with spacers to divid the strips one by one

** The press device with felted woolen will create the first tension part to ensure the tight and even recoiling quality

** The press part is adjustable as per the various thickness requirements

5. Recoiler

** the press arm will divide the strips one by one and create the tension with the tension stand

** The motor makes the speed adjustable

Photos

Recoiler---------- mechanical.

Decoiler----------- mechanical.

This is photo of the bakelite plate which is make the strips moving forward.

Why Wuxi Bangzhou?

1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

2), Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly

3), Q: How does your factory do regarding quality control?
A: Quality is priority. Wuxi Bangzhou People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.

4), Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components

5), Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.

Thank you for your visiting. Any questions, please feel free to contact us.

Exhibition
Every year, 15th -19th April and 15th-19th October, our company will be in the Canton Fair 7.1 C03
Welcome to visit our booth!!!!!!
