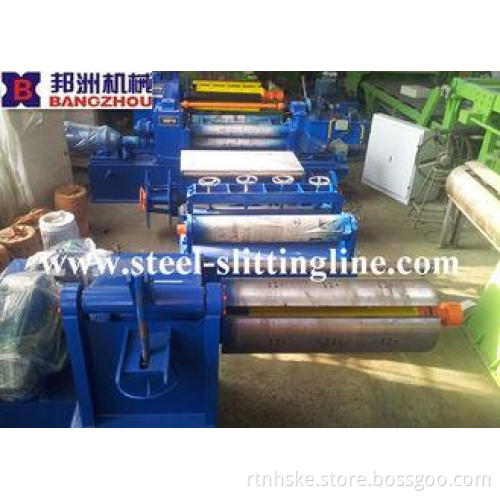

Simple Steel Coil Slitting Line and Slitting Machine with low speed
1. Material: CR/ carbon steel
2. Steel thickness: 0.3-1.5mm
3. Steel width: 1250mm
4. Speed: 0-40m/min
I. Specifications
| No. | Name | parameters | |
| 1. | Control model | Frequency conversion control | |
| 2. | material | Carbon Steel coil | |
| 3. | thickness | mm | 0. 3-1.5 |
| 4. | Width(max) | mm | 1250 |
| 5. | Coil ID | mm | 480-520 |
| 6. | Coil OD | mm | 1200 |
| 7. | Weight | T | 5 |
| 8. | Blade specification | mm | Φ120×Φ320×10 |
| 9. | Material of blade | 9CrSi | |
| 10. | Line speed | m/min | ≤40 |
| 11. | Power of decoiler | 5.5 | |
| 12. | Power of slitting machine | kw | 11 |
| 13. | Power of recoiler | kw | 22 |
| 14. | Quantity of strips can slit (Max) | strips | 10 |
The whole line speed is adjustable
II. Function:
steel coil slitting line called slitting machine which is used to slit the big coil into small coils by doing the longitudinal shearing for the steel coils.
III. Composed device:
1. Decoiler
** The motor will drive it running and help the decoiler to feed the material to the next device
** It can expand and shrink to meet the different coil Inner diameter's requirement.
** It is one of the important part of the slitting line
** Capacity: 5T
2. Slitter
** At the entry part, it is equipped with the side guide device to prevent the sheets not directly go into the slitter
** Steel slitting line' s slitter part designed with the bracket movable structure to make it easy to adjust the slit width
** It should be equipped with the blades, shim , bakelite plates or the rubber band to make the slitting possible
3. Scrap winder
** In the slitting line it is designed to receive the waste materials on both sides
** And a shaft with the 5.5 KW motor to wind the material with speed adjustment
4. Tension stand
** Two shafts will be equipped with spacers to divid the strips one by one
** The press device with felted woolen will create the first tension part to ensure the tight and even recoiling quality
** The press part is adjustable as per the various thickness requirements
5. Recoiler
** the press arm will divide the strips one by one and create the tension with the tension stand
** The motor makes the speed adjustable
** Recoiler is the most importmant part of the whole steel slitting line.
Layout of the whole line
Decoiler----Pit 1------Slitter-----Scrap WInder------Pit 2------Tension stand------Recoiler
Below is the photo to upload into the container to Colombia:
One 40GP is enough to carry the whole line.
