3 x 1250mm Carbon Steel / HR/ PPGI Steel Coil Slitting Line

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

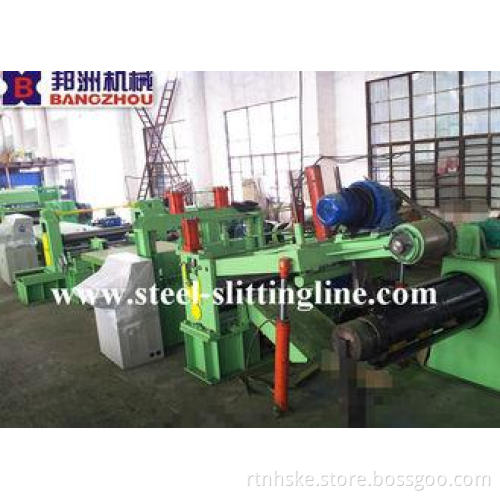

3x1250mm Carbon Steel /HR/ PPGI Steel Coil Slitting Line With 10T

Quick Detail:

1) Name: Steel coil slitting line

2)Thickenss: 0.3mm-3mm

3) Width: 500mm-1250mm

4) Capacity: 10T

5) Speed: 0-40m/min

6) Maximum slitting slices: 9 pieces

7) Composed device: uncoiler , slitter, recoiler

Technical Specifictions

Item	Steel slitting line
Coil Material Specifications Kind provide the detailed information with the inquiry	Thickness	0.3-3mm
	Coil width	500-1250mm
	Material	Hot rolled steel
	Coil weight	10T
	Coil I.D	480mm-510mm
	Coil O.D	1400MM
Decoiler and Recoiler	Type	Hydraulic&Motorized
	Coil Width	Max. 1300mm
	I.D	480-510mm
	O.D	Max. 1500mm
	Capacity	10T(Max)
	Scrap winder I.D	420mm
Blade Specifications	dimension	200mmx340mmx15mm
	material	6CrW2Si
	hardness	HRC58-60
Slitting line specifications	Line speed	0-40m/min
	Power	380V/50HZ/3 PH
	Dimension	18M(L)x7m(W)
	Slitting width tolerance	≤±0.05mm/2m
Operation workers needed	1 technician and 2 common workers

Main Components of the slitting line

Hydraulic entry coil car	1 Unit
Hydraulic decoiler	1 Unit
Press and pinch device	1 Unit
Hydraulic head cutter	1 Unit
Side guide device	1 Unit
Slitter	1 Unit
Scrap winder	1 Unit
Tension stand	1 Unit
Recoiler	1 Unit
Hydraulic exit coil car	1 Units

Layout of the whole slitting line

Features:

1. This is a pipe steel slitting line, which can process the steel coil above 2mm but less than 4mm.

2. Semi-automatic design make the whole line very easy to operate and also strong enough .

3. It is a line between automatic and simple so competitive in the price.

4. No need the big pits , it is design as up the ground.

Company Introduction

Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Jiangyin, Wuxi City. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.

Our main products are Steel coil slitting lines, cut to length lines, Flat bar chamfering, deburring and straightening machines, . Our products are supplied to roll forming machine and pipe welding factories and can be also applied to other industries which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field

We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!

Welcome to our company like them :

We discuss about the machines here...

We chat to know each other here...

We build our business relationship and friendship here...

Customer feedback

All we can guarantee is our quality and our service. So even after sales, we always keep in touch with our customers to know our machines situation.

When we hear our machine is good in working, that is the comfort for our working also make us feel much meaningful .

Competitive Advantage:
