Product Description

Mechanical Adjustable Slitter Line Machine For HR / CR Steel Coils

Composed device:

1. Decoiler

** The motor will drive it running and help the decoiler to feed the material to the next device

** It can expand and shrink to meet the different coil Inner diameter's requirement.

** Welding structure for the steel plates

** Capacity: 5T

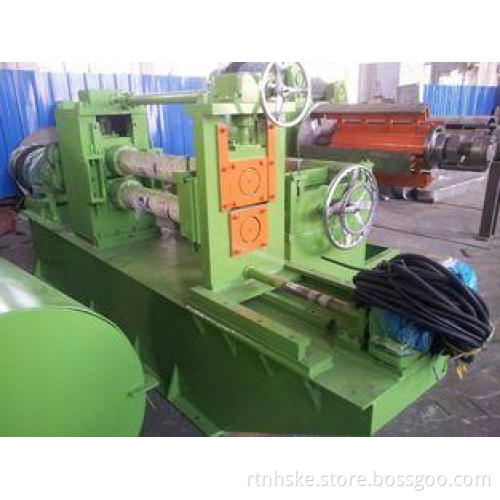

2. Slitter

** At the entry part, it is equipped with the side guide device to prevent the sheets not directly go into the slitter

** It is designed with the bracket movable structure to make it easy to adjust the slit width

** It should be equipped with the blades, shim , bakelite plates or the rubber band to make the slitting possible

3. Scrap winder

** It is designed with the barrel-type to receive the waste materials on booth side

** And a shaft with the 5.5 KW motor to wind the material with speed adjustment

4. Tension stand

** Two shafts will be equipped with spacers to divid the strips one by one

** The press device with felted woolen will create the first tension part to ensure the tight and even recoiling quality

** The press part is adjustable as per the various thickness requirements

5. Recoiler

** the press arm will divide the strips one by one and create the tension with the tension stand

** The motor makes the speed adjustable

No.	Name		parameters
	Control model		Frequency conversion control
	material		Steel tape
	thickness	mm	0. 5-2
	Width(max)	mm	800
	Coil ID	mm	480-520
	Coil OD	mm	1200
	Weight	T	5
	Blade specification	mm	Φ120×Φ320×10
	Material of blade		9CrSi
	Line speed	m/min	≤40
	Power of decoiler		5.5
	Power of slitting machine	kw	11
	Power of recoiler	kw	22
	Quantity of strips can slit (Max)	strips	10
