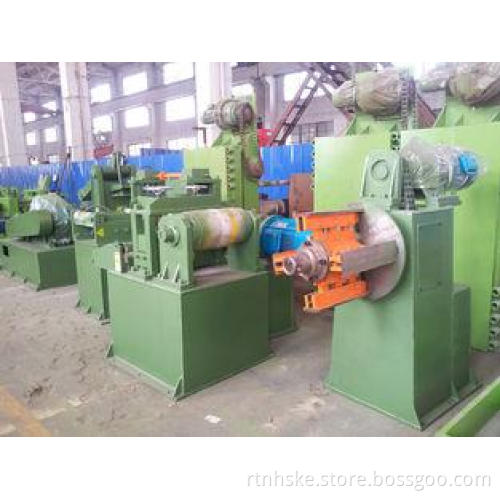

CR / HRC Simple Slitting Line Machine ZJX-2X400 With Electric Control System
- Application:CR/HRC/stainless steel /galvanized
- coil weight:5MT(max)
- line speed:0-40m/min
- thickness of coil plate:0.5-2mm
- width of coil plate:400mm
Specifications:
ZJX-0.5-2X400mm full automatic slitting line is used for slitting the carbon plate to prepare for the next process.
1. De-coiler
◆ Supporting steel rolls and uncoiling.
◆It can expand and shrink manually and fit with the inner hole of the steel coils and is equipped with supporting stand.
◆5.5KW motor drives the coils running and the motor can run right and left to prevent the coils running by inertia.
2. Side guide device
◆The guide plate are adjusted by the rods on both sides .
◆It is adjust by manually
3. Slitting machine
◆Power part: This is composed of power-stand, decelerator, 15KW direct current motor, gear distributing case, coupler, spindle, connecting-cover, etc.
◆Host machine: This is composed of bottom-stand, fixed bracket, big slide, knife pivot (φ120mm, 2pcs), movable bracket, slide, the front and back adjustable device of bracket, knife pivot lifting and pressing down adjustment device,
◆It change the blades through moving out the bracket manually and is very convenient and fast.
4. Scrap winder
◆It consists of base, the shaft and plate of scrap material, friction wheel, supporting wheel chain, chain, decelerator and 7.5Kw electric machine.
5. Tension stand
◆This is composed of frame, preliminary dividing shaft, bracket, pressing shaft, hydraulic damping device, lifting and pressing device for pressing shaft, set of dividing slice and cover, etc.
6. Recoiler
◆It adopts the manually expand and shrink recoiler shaft to tight the inner hole of coils.
◆It uses the lifting arm with the supporting spacers to ensure the even recoiling quality.
7. Electric control system:
electric cabinet and operate table, all the electrical parts are the international brand, such as Omron, Schneider and Siemens. We will order these elements for you and will inform you which kind brand we adopt.
Applications:
ZJX-0.5-2X400mm full automatic slitting line is used for slitting the CR/HRC/stainless steel /galvanized to prepare for the next process.
Specifications:
Application: |
CR/HRC/stainless steel /galvanized and so on |
thickness of coil plate: |
0.5-2mm |
width of coil plate: |
400mm |
coil weight: |
5MT(max) |
coil I.D: |
ф508 |
coil O.D: |
ф1600mm |
the diameter of slitting blade shaft |
ф120 |
slitting blade: |
φ120Xφ220X15 |
material of slitting blade: |
6Crw2Si |
the hardness of slitting blade: |
HRC58°-60° |
recoiler I.D: |
φ508 |
power: |
380V/50Hz/3Ph |
tolerance of width error: |
≤±0.05mm/2M |
line speed |
0-40m/min |
area of the whole machine: |
15m(L)x4m(W) |
Production orientation |
from left to right |
Competitive Advantage:
1. full automatic which is driven by hydraulic and the electricity
2. convenient to operate
3. high production and competitive price.
4.accurate precision of cutting.
