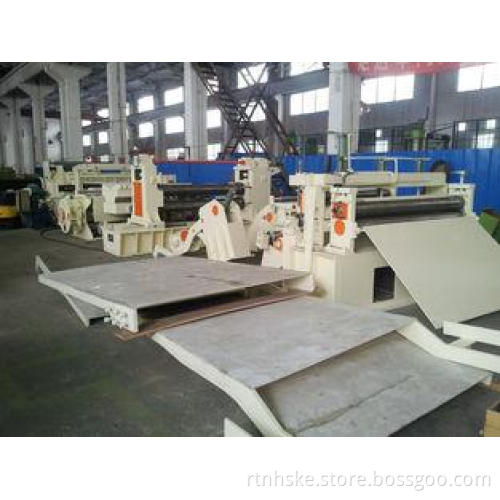

20T CR / HR Automatic Slitting Machine ZJX-3X1600 With Decoiler And Recoiler
I. Specifications
Application: |
CR/HRC/stainless steel /galvanized and so on |
thickness of coil plate: |
0.3-3mm |
width of coil plate: |
1600mm |
coil weight: |
20T (max) |
coil I.D: |
ф508 |
coil O.D: |
ф1600mm |
the diameter of slitting blade shaft |
ф200 |
slitting blade: |
φ200Xφ340X15 |
material of slitting blade: |
9CrSi |
the hardness of slitting blade: |
HRC58°-60° |
recoiler I.D: |
φ508 |
power: |
380V/50Hz/3Ph |
tolerance of width error: |
≤±0.05mm/2M |
line speed |
0-120m/min |
area of the whole machine: |
30m(L)x8m(W) |
Production orientation |
from right to left |
Ⅱ.Composed devices
1. Hydraulic coil car
2. Hydraulic de-coiler
3. Hydraulic press and guide and pinch device
4. Hydraulic head-cutting machine
5. Looper I
6. Slitting machine
7. Scrap winder
8. Looper II
9. Hydraulic damping and pre-dividing and press device
10. Recoiler
11. Hydraulic unload car
12. Electric control system
13. Hydraulic system
III. Layout
ZJX-0.3-3X1600mm automatic slitting machine is used for slitting the CR/HRC/stainless steel /galvanized to prepare for the next process.
Brief Introduction:
1.Hydraulic entry coil car
◆Automatic slitting machine entry coil car can move levelly and vertically, which is convenient for putting the steel coils into the de-coiler.
◆It is driven vertically by hydraulic cylinder with four guide pillars.
◆The level movement is driven by cycloidal motor .
2. Hydraulic un-coiler
◆Automatic slitting machine uncoiler is used for Supporting steel rolls and uncoiling.
◆It can expand and shrink with hydraulic oil cylinder and fit with the inner hole of the steel coils and is equipped with supporting stand.
◆Moment motor drives the coils running and the motor can run right and left to prevent the coils running by inertia.
3.Press and pinch and feed device
◆Automatic slitting machine adopts two hydraulic oil cylinders to control the lifting of rollers
◆hydraulic telescopic shovel and hydraulic press and hit the head device .etc to feed the plate
◆hydraulic pinch and feed device: driven by the 30KW cycloid pinwheel decelerator and equipped with hand clutch. The pinch rollers adopt the hydraulic oil cylinder to press down. It is driven by down rollers.
4.Hydraulic head-cutting machine
◆Automatic slitting machine adopts two columns structures, a press device, can cut the 3mmX1600 steel plates ;
◆The up and down blades which are alloy material 9CrSi can adjust their gap;
◆The machine is used for the steel shear and to make the plate easy to slitting machine.
5.Looper Ⅰ
◆The looper o9f automatic slitting machine is composed of the pit and the bridges which will create a buffer zone for easier into next stage process.
◆It uses the 2 groups of magic eyes to control the speed buffer between decoiler and slitting machines
◆Magic eye is controlled by PLC.
◆The pit size: 4000mmx2000mmx2500mm.
◆The roller-table is lifted up and down by hydraulic.
◆It is designed with side guide device which is located before the slitting machine.
6.Slitting machine
◆Power part: This is composed of power-stand, decelerator, 55KW direct current motor, gear distributing case, coupler, spindle, connecting-cover, etc.
◆Host machine: This is composed of bottom-stand, fixed bracket, big slide, knife pivot(φ200mm, 2pcs), movable bracket, slide, the front and back adjustable device of bracket, knife pivot lifting and pressing down adjustment device.
7.Scrap winder
◆It consists of base, the shaft and plate of scrap material, friction wheel, supporting wheel chain, chain, decelerator and 7.5Kw electric machine.
8.Looper Ⅱ
◆At the exit part of the roller table, it is designed with the pre-dividing device.
◆The size of the pit: 4000mm(L)x2000mm(W)x4000mm(D)
9.Tension stand
◆Tesion part of this automatic slitting machine line is composed of frame, preliminary dividing shaft, bracket , pressing shaft, hydraulicdamping device, lifting and pressing device for pressing shaft, set of dividing slice and cover, etc.
10.Recoiler
◆This is composed of frame, bearing-stand, recoiling shaft, expand recoiling device and plate, movable supporting stand, accompany of decelerator, direct-current speed adjustable motor: 90KW and direct-current electronic cabinet, etc.
◆Designed with the seamless expand and shrink structure and hydraulic clip-mouth so that when the heads feed into the clip-mouth, it will close automatically and start winding.
◆Press arm lift up and down by hydraulic and it is equipped with the pushing plate which is used to help pushing the coils to the coil car.
11.Hydraulic exit coil car
◆This car carries the finished coils and movable lift
V. Competitive Advantage
- Automatic design ,easy operation with high production
- Accurate precision of shearing
- Professional design, strict produce
- 100% low price guarantee
- Delivery date guarantee
