PLC Control Gabion Mesh Production Line , Netting Hydraulic

PLC Control Gabion Mesh Production Line , Netting Hydraulic Packing Machine

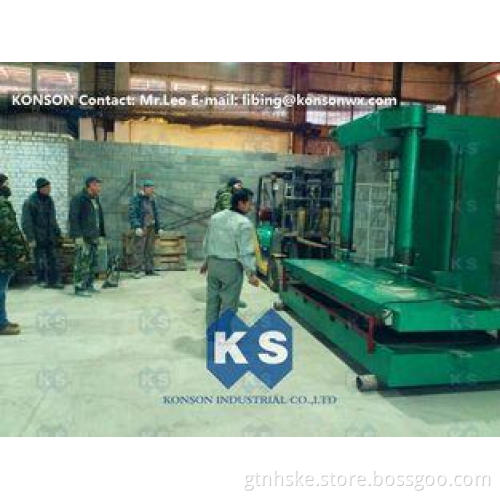

1. Automatic Hydraulic Packing Machine:

When the packing machine working, oil pump unit provide the pressure oil via safety valve limit the pressure and enter manual reversing valve, when manual reversing valve work on the left, pressure oil enter on the oil cylinder via piston, piston rod pull pressure plate run downwards, the down oil of the oil cylinder stream back to tank via reversing valve.

Sell to Jiangyin Jinlida Light Industry Machinery Co.,Ltd.

Working Width:3000x1000mm

Working Width:2000x1000mm

2. Products of Packing Machine:

3. Detail information:

1.Machine size: 3700x2450×1250mm

2.Nominal pressure: 80KN

3.Working stroke: 700mm

4.Pressure plate downwards running speed: ≥35mm/s

5.Pressure plate upwards running speed: ≥50mm/s

6.Packing gabion size: 2000×1000×1000mm

7.Hydraulic oil: 32# hydraulic oil

8.Working pressure:0.4-0.6MPA

9.Machine weight:1500KW

10.Power: 5.5Kw

4. KS Series Gabion Production Line:

Standard Machines:

1. Main netting machine
2. Winding machine
3. Wire tension device
4. Spiral coiling machine

Optional Machines:
5. Hydraulic packing machine
6. Wire spools
7. Work platform
8. Netting straightening machine
9. Netting cutting machine
10. Wrapped edge machine
11. Selvedge cutting machine
12. PVC coating line

6.Engineering projects of gabion boxes:

Why always choose KONSON?

+ The earliest manufacturer of Gabion machine in China.

+ We have experience of export business for more than 15 years.

+ The finished products can meet international standard ASTM , BS, EN and pass ISO,SGS quality certificate system.

+ Complete material testing system and QC system.

+ Experienced staffs, the fastest delivery time.

+ Best service (Any enquiry will be replied within 24 hours). Thanks for your reading!
