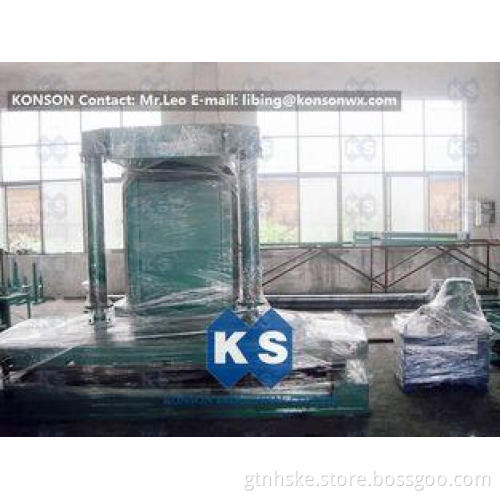

3000×1000mm And 2000x1000mm Automatic Hydraulic Packing Machine Gabion Production Line Manufacturers
Automatic Hydraulic Packing Machine:
When the packing machine working, oil pump unit provide the pressure oil via safety valve limit the pressure and enter manual reversing valve, when manual reversing valve work on the left, pressure oil enter on the oil cylinder via piston, piston rod pull pressure plate run downwards, the down oil of the oil cylinder stream back to tank via reversing valve.
Working Width:3000x1000mm
Working Width:2000x1000mm
Detail information:
1.Machine size: 3700x2450×1250mm
2.Nominal pressure: 80KN
3.Working stroke: 700mm
4.Pressure plate downwards running speed: ≥35mm/s
5.Pressure plate upwards running speed: ≥50mm/s
6.Packing gabion size: 2000×1000×1000mm
7.Hydraulic oil: 32# hydraulic oil
8.Working pressure:0.4-0.6MPA
9.Machine weight:1500KW
10.Power: 5.5Kw
