220V IP65 Portable Led Tower Light with Diesel Generator Can Be Customized
Quick Detail:
| Place of Origin | Zhejiang, China (Mainland) Brand |
| Max adjustable height | 10m |
| Watt | 8*400w |
| Generator | 5.5kw Kaipu/Kubota generator |
| Light source | MH/HPS |
| Controlled operation | Automatic/Manul operation |
| Enclosure | IP54 |
| Type | Diesel Light Tower |
| Service life | 10000h |
1. Overview:

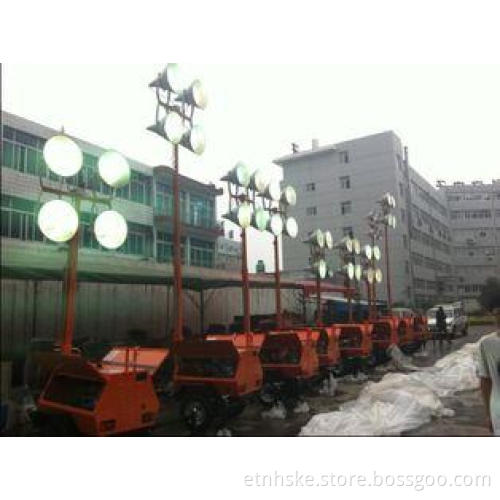

Mobile Light Tower(Hand-push Type)
It is normally used for night construction and other field operation in the sectors of municipal
engineering, road, bridge, port, mining and construction etc. Meanwhile,
it also used on the occasion of night rush repairs and disaster relief site.
2. Features:
Portable Led Tower Light with Diesel Generator
1)Famous motor and generator, excellent performance, start easily;
2) metal halide lamp has long service life;
3) Anti-fall, safe and solid;
4) Hand-operated winch, lockable at any moment;
5 )Elevating frame is made of Stsainless steel square pipe;
6) Elevating frame can rotate, east for light waving, overturn to intake,transport and store;
7) Plastic treated, anti-rust, anti-corrosion and beautiful.
Portable Led Tower Light with Diesel Generator
| Type | Air cooled, 4stroke, OHV gasoline engine | Air cooled, 4stroke, single cylinder direct injection type diesel engine | |||
| Generator Types | Single-phase alternator | ||||
| Rated Power | 2.0kw | 3.0kw | 3.0kw | 5.0kw | |
| Rated Voltage | 220V | 220V | 220V | 220V | |
| Continuous working time (hour) | 13hr | 13hr | 13hr | 9hr | |
| Oil Tank | 15L/12.5L | 25L/12.5L | 25L/12.5L | 25L/16L | |
| Power*lamp | 400W*2 | 400W*4 | 1000W*2 | 1000W*4 | |
| Stanchion Lamp frame | 3 sections | 4 sections | 4 sections | 4 sections | |
| Elevating height | 1800-3800mm | 1800-4600mm | 1800-4600mm | 2000-5600mm | |
| Anti-slope | <10° | ||||
| Anti-wind | <6 | ||||
| Walk type | Hand push type | ||||
| Total luminouness | 72000Lm | 144000Lm | 220000Lm | 440000Lm | |
| Lamp | Metal halide lamp | ||||
| Elevating mode | By hand-operated | ||||
| Package size | Main machine | 1300*900*950mm | |||
| Stanchion | 1750*500*500mm | ||||
| Lamp | 440*440*480mm*2 | 440*440*480mm*4 | 600*600*600mm*2 | 600*600*600mm*2 | |
| Net weight(kg) | 95/165kg | 120/175kg | 110/210kg | 140/230kg |
|
