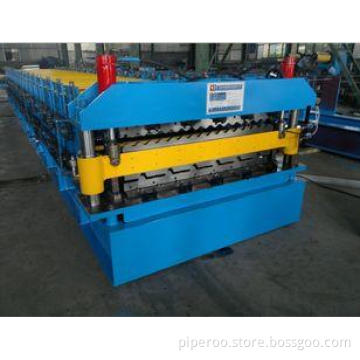

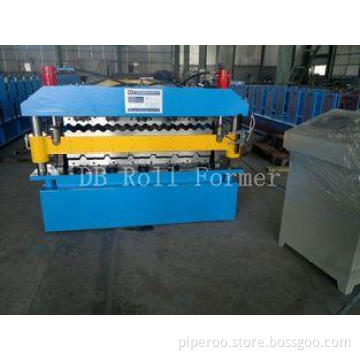

Double Layer Roll Forming With Machine Colored Steel Sheet

Double Layer Roll Forming With Machine Colored Steel Sheet And Galvanized Steel Sheet

Application:

Double Layer Roll Forming Machine can separate produce corrugated roof and IBR roof in one line or similar two profiles.

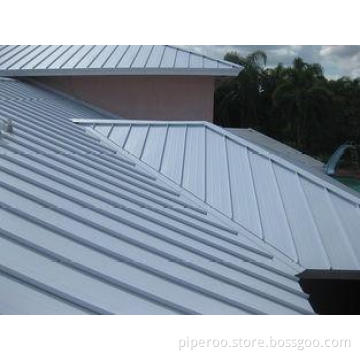

The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.

Technical Parameters:

1) Main motor power: 5.5kw
2) Drive: Chain
3) Main shaft dia: ￠76mm material: 45# forge steel and quenched
4) Roller material: 45# forge steel and quench treatment hardness 58-62, chrome coated 0.05mm

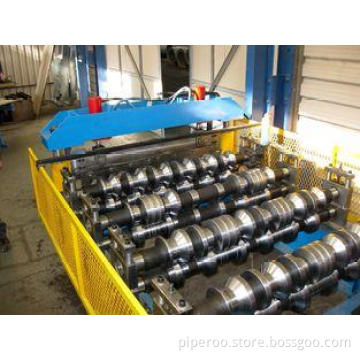

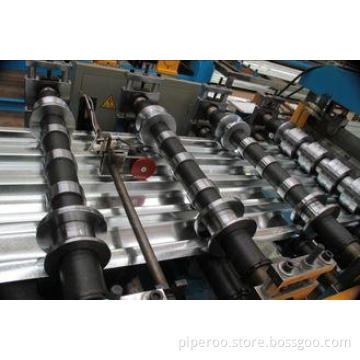

5) Roll station: 16 groups for upper layer and 20 groups for lower layer
6) Raw material: 0.3-0.8mm
7) Width of raw material: 1250mm
8) Valid width after fromed: 1150mm&1000mm
9) Working speed: 10m--15m/min(Exclude cutting time)
10) Length Tolerance: ±2mm
11) Weight of machine: about 8ton
12) Size of machine: About 10500×1800×1900mm L x W x H
13) Color of machine: depend on customer
14) Coder: Omron
15) Control: PLC Panasonic, made in Japan. 380V 50HZ
16) Computer operating panel: touching screen
17) Cutting: Hydraulic cutting
18) Auto cutting when reach the set length.
19) Hydraulic power: 3KW
20) Blade material: Cr12,quenched 58°-62°
21) Working pressure:16mpa
22) Cutting tolerance: +/- 1.5mm

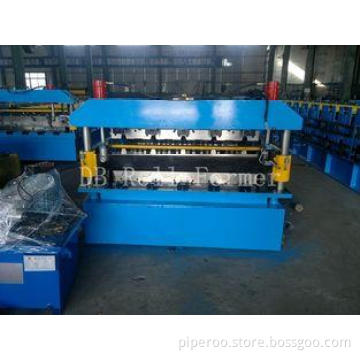

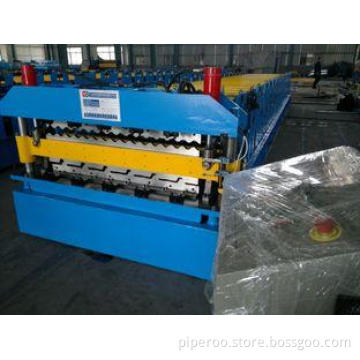

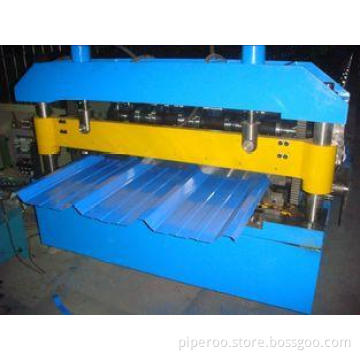

Main component:

Advantage:

available for two profiles roof panel shared one frame, save the cost.
1) Used to produce different roof panels and wall panels
2) Produced panels have such advantages as below:
a) Fine profile
b) Attractive color
c) Agile connecting
d) Slightly curved

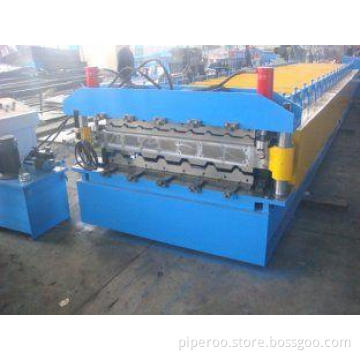

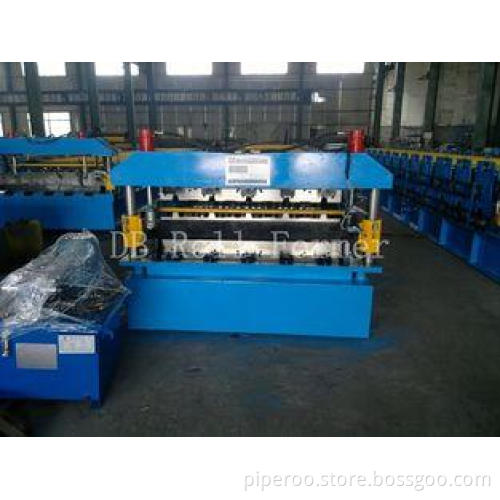

3) dual-level roll forming machine
4) We can design and manufacture different type of it to hit your particular profiles
