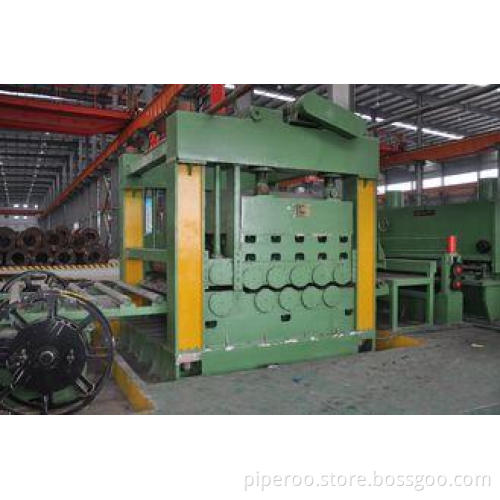

Edge Trimming High Precision Leveling Cut to Length Line
We offer professional one-stop service for the production line
We design and produce the machine according to client's requirements.
Description
This Cut to Length Line is suitable for decoiling, leveling & cutting steel coils into required length. The production line has the feature of high precision, topping stabilization, and excellent performance. Using PLC system to control the whole line’s work, the operation is convenient and easy.
The machine adopts PLC VF controlling system, DC driving for the leveling, Touch screen operating and digital display. The production line is widely used for steel coil servcing for cold rolled steel, hot rolled steel, galvanized steel, stainless steel, etc.
Feature of the Machine
Work Flow
Feeding trolley→ un-coiler→ leading and traction head, pinch roll feeding→ high precision leveling device→ cut to length→ unloading table/auto-stacking table
Main Machine Components
Main Electric Elements
Motor controller: Eurotherm/ Siemens/Mitsubishi
PLC: Mitsubishi/Siemens
Encoder: Omron
Inverter: Mitsubishi/Yaskawa/Delta
Touch screen: Inovance/Delta
Spec list of Cut to length line
|
Model |
3×1600 |
6×1600 |
8×2000 |
10×2200 |
12×2200 |
16×2200 |
20×2500 |
25×2500 |
|
Coil Thickness/mm |
0.2-3 |
1-6 |
2-8 |
2-10 |
3-12 |
4-16 |
6-20 |
8-25 |
|
Coil Width/mm |
1600 |
1600 |
2000 |
2200 |
2200 |
2200 |
2500 |
2500 |
|
Tolerance/mm |
±0.5 |
±0.5 |
±1 |
±1 |
±1 |
±1 |
±1 |
±1 |
|
Leveling Roller |
15 |
15 |
13 |
13 |
11 |
11 |
9 |
9 |
|
Roller Shaft Diameter/mm |
