Basic Info

Place of Origin:	Shenzhen,China

Product Description

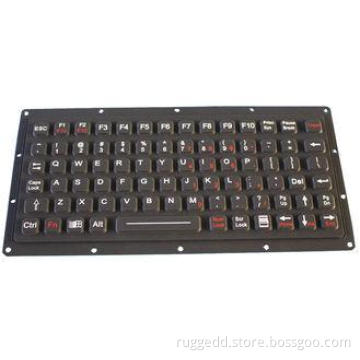

water proof silicone rubber ruggedized keyboard with easy cleaning key

Special Features:

1. 106 keys IP68 dynamic rated & ruggedized industrial silicone rubber Hygienic keyboard with industrial
PCB included
2. integrated numeric keypad, function keys
3. industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good
tactile feeling for fast and accurate data input without any noise
4. with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh
environment
5. Clean key for easy cleaning, movable stand alone desk top version with robust polycarbonate case
6. adjustable industrial backlight optional,
7. military level optional.

Specification:

MECHANICAL DATA
Key	106 keys
Key top style	Protuberant rectangular keys with tactile feeling.
Key Size	12.0mm X 13.0mm for normal keys, 22.5mm x 13.0mm for enter key 82.0mm x 12.5mm for space bar key.
Key travel	1.5mm
Switch life	more than 10 million of operations
G.W.	1.60KGs
Dimensions:	390.0mm x 154.0mm x 19.0mm (L x W x H)

ELECTRICAL DATA
Supply Voltage	+5V DC +/-5%
Current Rating	20mA (non-backlight), 140mA (with backlight on)
EMC Standard:	It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
EMI:	EN 50081-1
Immunity:	EN 50082-1
Lifespan	> 3 years
Switch Contact Material:	Carbon-on-Gold key switch technology with gold PCB.
Interface:	PS2, USB available.
OS:	All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20oC to +60oC(industrial level);-40oC to +85oC(military level)
Storage temperature	-30oC to +70oC(industrial level);-55oC to +150oC(military level)
Humidity	100%
Atmospheric pressure	60-106Kpa
Shock	3x11 ms pulses of 50g on each of 3 axes
Vibration	POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours Flammability
Printed Circuit Board	94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V

RELIABILITY
Certification	RoHS Compliant, CE and FCC, IP68,ESD
Protection Level	IP68;NEMA 6P
Key Lifespan	>10 million actuations
MTBF	>50000H
MTTR	<30min
