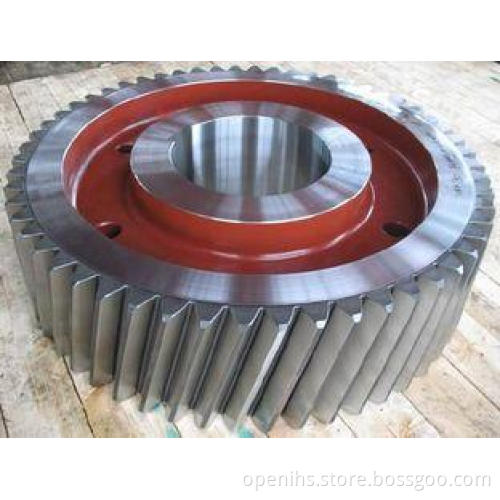

42CrMo Heavy-duty Gear Forging For Mine With Diameter 6M
Description:
1,Transmission gear is used in mining machinery, metallurgical machinery, wind power gears, gear offshore
oil platforms, marine gearbox,The material is 20NiMnCr
2,It conforms to the standard of ASTM and ASME
3,The manufacturing equipment is 60MN hydraulic press,
The forging ratio 3:1,
4,UT standard is in accordance with standard of EN10228.3:1998 level 3
5,Delivery lead time :45days
6,Port of loading:Shanghai port
Specifications:
|
Description |
transmission gears, |
|
material |
42CrMo |
|
Material standard |
ASTM or GB,EN |
|
Dimension |
Max.OD: 9000mm Max. Length: 3000mm |
|
Weight |
Max.100 ton |
|
Smelting Process: |
EF+LF + VD |
|
Process |
Ingot→heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection |
|
UT standard |
EN10228.3:1998 level 3 |
