304 Stainless Steel Automatic Drop Arm Barrier Electric Rfi

Specifications

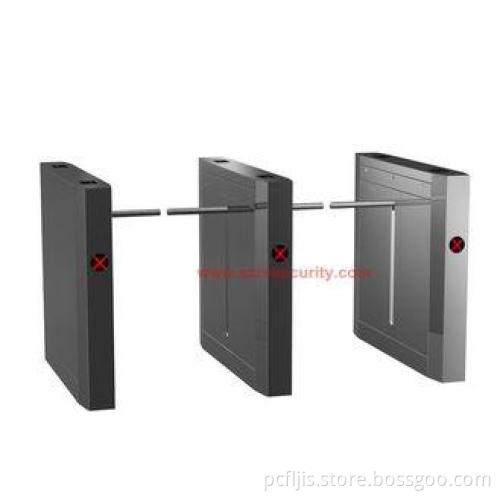

Automatic drop arm turnstile
Bi-direction with direction display
600mm passage
SS304 with good finishing
Interface to access

Automatic drop arm turnstile:

Introduction:
Arm drop turnstile has standard electrical interface which can be connected with ID cards, IC cards, magnetic cards, barcode cards etc. The integration system ensures passing in order and will never allow unauthorized persons to go in or go out.

Specifications:
1. Power Supply: AC220V±10V ,50Hz / AC110V±10V ,60Hz
2. Power Consumption: 100W/24V
3. Temperature: -15 to 60 degrees
4. Humidity: <95%, without concretion
5. Passage Width: <=600mm
6. Passing Speed: 30 persons/min (normal open), 20 persons/min (normal close)
7. Arm Open/Close Time: 1s
8. Input Interface: +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
9. Communication Interface: RS485 (Distance: <=1200m)
10. Material: Housing - 304 stainless steel
Arm - 202stainless steel
11. Dimension: 1200*280*960mm
Arm Length :<=600mm
Factory Default Arm Length: 500mm outside body

12. Weight: 60kgs
13. Working Environment: Indoors or outdoors with shed
14. Arm Turning: Single direction or Bi-direction

Functions and Features:
1. Problem-self-checking function.
2. Many options of working ways: bi-direction card reading; one direction card reading and another no reading; one direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
7. Swing barrier is with 485 interface for long-distrance control concern.
8. Anti-rush function: if there is no open single, arm will be holding tightly.
9. Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.When passenger is going through the swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.
10. Armdrop turnstile is with standard electrical interface for the integration of various readers and writers.
11. Armdrop turnstile can count how many passenger has passed and will show it in the LED display.
12. Direction display to guide passenger which direction is to go.
13. Card-reading with memory or without memory function.
14. Armdrop turnstile can control the population inside in the control of software.
15. Stable running with little noise
