Specifications
product name :security drop arm barrier turnstile
model:RS 1009
1.Mechanical structure
2.double anti-pinch function
3.sound and light alarm function: illegal intrusion with alarming

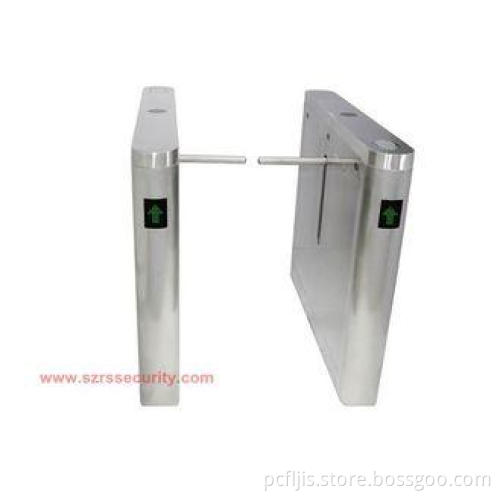

Drop Arm Turnstile Gate Smart Access Turnstile
main functions and features:
1)Self-report fault and alarm prompt, convenient for using and maintainance
2) can program operative status through internal installed keys on the main control board
3) Mechanical structure, induction double anti-pinch function, if there is obstacle during barrier reset, it will automatically stop or the electrical machine will stop working in default time, and reset after the default delay(until reset), and with small force(less than 2Kg)
4) sound and light alarm function: illegal intrusion with alarming
5) scour prevention: the barrier will automatically lock before receiving opening barrier signal
6) barrier type turnstile synchronization function
7) automatically reset function, if not pass in specified time after barrier opening, system will automatically cancel this passing permission, standardly, reset in 5 seconds after opening barrier.
8) the barrier will automatically open when power cut, and will close when power on.
9) can connect with various card reading devices, receive relay switch signal
10)can single-directionally or bi-directionally control persons in and out
11)can realize remote control and management through managing computer
standard technical parameter:
| case body size | 1200 x 162 x 1000mm(L x W x H) |
| standard barrier length | 300mm, optional range: 250-500mm |
| weight | 90Kg |
| case material | standard 304 stainless steel |
| power and voltage | AC220±10% V,50HZ |
| drive motor | DC brush type motor 24V |
| input interface | relay switch signal or 12V level signal or 12V pulse signal with pulse width more than 100ms and drive current more than 10mA |
