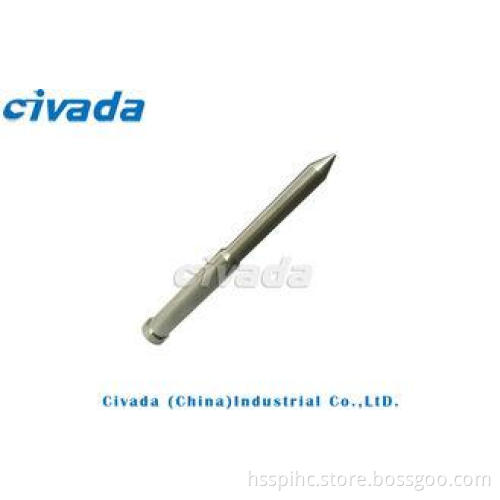

Powder HSS Pilot Punch Heavy Duty with Sharp Angle Tip for Press Die

Note :

R=0 can be selected
Shape of tip changes depending on P dimensions
RT -- If p＜8,tip is rounded for safety .To keep the sharp tip (no rounding ) specify RT=0
For the length of tip R ,refer to the products data " punch R length "

Our Punch product line includes:

Ball-lock regular and nose large styles - (light duty, heavy duty, extra heavy duty) for quick change applications.

Shoulder (Headed) Style - include are our commercial standard and precision tolerances.

Dura Punch - Designed with thicker, larger, and 10 degree angled diameter heads significantly reducing failure when piercing heavy gauge and high strength materials.

Quill - punches with straight and bevel style heads.

Blanks - Our inventory of ball-lock and shoulder type punches is available in numerous sizes including extra long lengths.

Custom Built - For piercing, piloting, forming or bending applications in a variety of materials with alternate heat treatments and performance enhancement coatings.

1. Material

SKD11 / Powerder HSS / SKH51

2. Hardness

60 ~ 67 HRC or depends on processing materials

3. Specification

Standards: MISUMI / Dayton / Lane / DIN / ISO / Fibro / Moeller / HASCO
Tolarance :shaft m5 ( 0 ~ +0.005mm ), R 0.1~0.3mm
Further dimensions, lengths and materials available on request
Customized sizes are accepted
Service: made-to-order and standard with stock
Good-quality and precision
High precison ,finishing machining
Working speed: 180 to 220/min
Polishing: can make close to Ra 0.4 standard is R 0.8

4. Machinery & Equipments

CNC machining center; CNC lathe; Normal lathe; CNC milling machine;
General punching machine, CNC turning center; Wire EDM, etc.
And we also can offer 4 or 5 axis-CNC center processes.
General milling machine; General drilling machine; General planning and grinding machine

Applications:

Punching Mold
Automobile Die
Suitable for different type of plastic bag making machine
Can punching for 0.01mm single-layer material of plastic bag,paper, non-woven fabrics. PE, OPP, PO, PP, PVC, PPE, PPU, OPE film

Further Information

Testing machine	Digital Height Gauge, caliper, Coordinate measuring machine, projection machine, roughness tester, hardness tester and so on.
QC	1) Technicians self-check in production 2) Engineer spot check in production 3) QC inspects after mass production finished 4) International sales who were trained the technical know-how spot check before shipping
Main Markets	North America, South America, Eastern Europe , West Europe , North Europe, South Europe, South Asia
