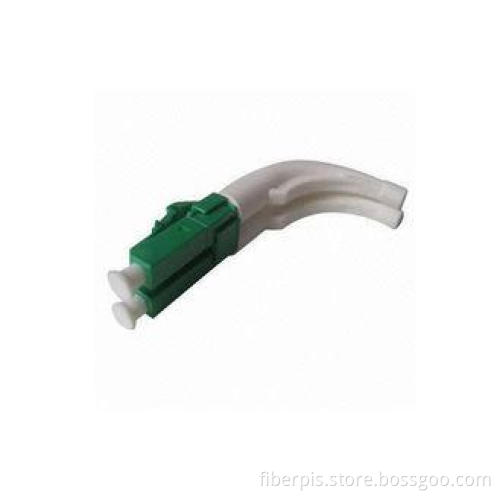

LC Duplex 3.0mm Fiber Optic Connector with 45degree Bent Boot
Qick Detail:
- Name: OM3 Fiber connector
- Ferrule size: 1.25mm, 2.5mm
- Ferrule End-face: APC UPC
- Cable diameter: 0.9mm, 2.0mm, 3.0mm
- Type: simplex, duplex
- Material: Plastic, Zinc Alloy, Bronze
Features:
- Easy installation
- Competitive price
- Telcordia style boots
- Good durability
Applications:
- Telecommunication
- Computer networks
- CATV networks
- Active device termination
Specification:
| Insertion loss | SM | ≤0.20 dB |
| MM | ≤0.25dB | |
| Return loss | P C | ≥50 dB |
| UPC | ≥55 dB | |
| APC | ≥65 dB | |
| Durability | <0.20 dB typical change, 1000 mating | |
| Ferrule hole sizes | SM: 125.0+1/-0um | concentricity:≤1.0um |
| 125.5+1/-0um | ≤1.0um | |
| 126.0+1/-0um | ≤1.0um | |
| MM:125 um | concentricity:1≤3 um | |
| 127 um | ≤3 um | |
| 128 um | ≤3 um | |
| Operating temperature | -40~80°C | |
Ordering Information:
Step 1: Connector Type: FC,SC,LC,ST,MTRJ,MU,MPO,D4,DIN,SMA
Step 2: Connector size: 0.9mm, 2.0mm, 3.0mm
Step 3: Ferrule End-face: PC, UPC, APC
Step 4: Core Type: Single-mode (SM:9/125um), Multimode (MM:50/125um,62.5/125um)
Step 5: Boot color: Black, Blue, White, Red, Yellow, Green, Beige, Aqua
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
- We could add customer's logo in the label.
