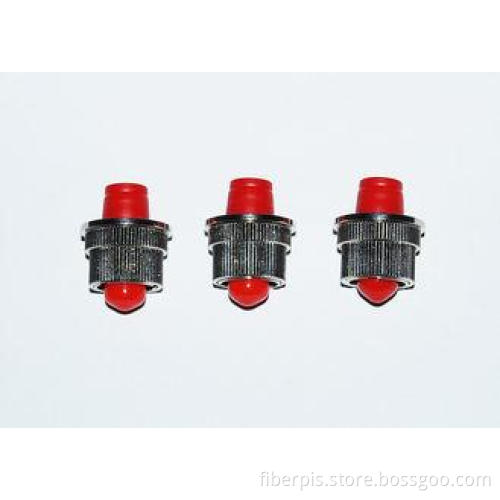

FC Variable Hybrid Fibre Optic Attenuator with 0dB - 30dB A

FC Variable Hybrid Fibre Optic Attenuator with 0dB - 30dB Attenuation Value

Quick Detail:

1. Name:FC Variable Fiber optic attenuator
2. Fixed/adjustable, Hybrid (or female-male)
3. 1~10 dB: precision ≤ ± 0.5dB
4. 11~15 dB: precision ≤ ± 0.75dB
5. 15dB or more: precision ≤ ± 1.0dB
6. Temperature Range -40 to +85°C
7. Wave length: 850nm, 1310nm, 1550nm, 1310/1550nm
8. Attenuation levels ranging from 1dB to 30dB, with standard and premium tolerances

Description:

Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.

Features:

1. Precision ceramic ferrule
2. SC,LC,FC,ST,MU Optional
3. High reliability
4. Compact in size
5. Simple and Reliable Structure
6. Excellent environment stability
7. Wide attenuation range (variable)
8. Low insertion loss
9. Good environment performance

Application:

1. Local Area Networks
2. Fiber Optic Communication Systems
3. Fiber optical distributing frame
4. Fiber optical network system
5. CATV system
6. Long distance DWDM system
7. Optical add-drop multiplexers(OADM)

Specification:

Ordering Information:

SC/UPC-SM-3dB-Female&Male

Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
