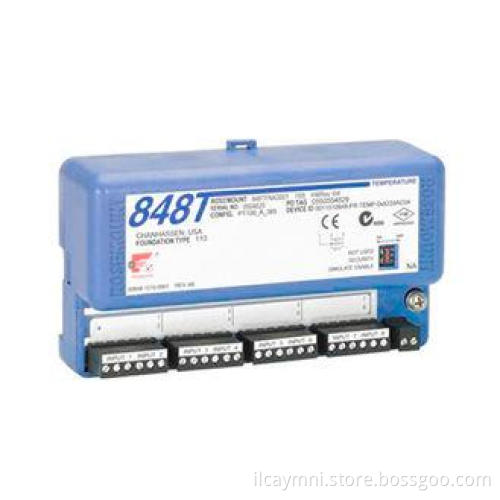

Rosemount 848T Temperature Measuring Instruments for high density temperature measurement applications
Quick Detail:
| • | Accepts eight independently configurable RTD, thermocouple, ohm, and millivolt inputs |
| • | Industry first Measurement Validation Diagnostic can detect data abnormalities before a shutdown condition occurs and can identify on-scale failures |
| • | Powers PlantWeb® by providing multi-sensor measurement capabilities and diagnostics in one transmitter |
| • | Reduces the need for signal wiring and can cut capital expenditures by up to 70% when compared to traditional temperature architectures. |
| • | Installs next to process for shorter wire runs reducing the effects of electromagnetic interference from nearby electrical equipment |
| • | Easily integrates existing analog instrumentation into FOUNDATION fieldbus environment with the added digital features including: |
| - | 2 Multiple Analog Input (MAI) function blocks to efficiently communicate all eight measurements at once | |
| - | 4 Input Selector (ISEL) function blocks for selecting Average, Minimum, Maximum, Midpoint, or First Good Status Temperatures | |
| - | Backup Link Active Scheduler (LAS) ensures measurement availability | |
| - | 8 Analog Input (AI) function blocks to communicate individual measurements with alarming |
| - | Communicates up to 128 temperature measurements on two wires using innovating High Density technology |
Description:
The first choice for high density temperature measurement applications now with industry first Measurement Validation Diagnostic.
The Rosemount 848T FOUNDATION™ fieldbus temperature transmitter simplifies and reduces the cost of a plant’s process control architecture. It replaces traditional temperature monitoring methods (wired direct, low cost single input transmitters, and multiplexers) with an intrinsically safe, eight input transmitter that mounts close to the process. The industry first Measurement Validation Diagnostic available on the Rosemount 848T Fieldbus transmitter provides insight into your process and can identify measurement abnormalities before they become a major issue, saving your time and money associated with process shutdowns and helping you run your process more efficiently. The 848T also comes with a new Device Dashboard, which gives users a clear view of everything needed to evaluate, diagnose, and configure the 848T. The new interface leverages Human Centered Design principles to create a streamlined, easy and efficient user experience, eliminating the complexities, and allowing the user to realize the benefits of FOUNDATION™ fieldbus.
Applications:
- Chemical Manufacturer Avoids Shutdowns by Using Fieldbus Technology
- Rosemount Temperature Transmitter Prove Best Practice on Project in India
- Biotech Company Reduces SIP Cycle Time by 20%, Leading to Minimized Product Contamination
- Glass Furnace Temperature Upgrade Saves $31,000 and Reduces Maintenance
- Pharmaceutical Company Saves Commissioning Time and Costs
- Temperature Instruments Secure Critical Start-Up Deadline on Lube Oil Project
- Pulp and Paper Mill Saves on Installation Costs
- Bearing Monitoring Prevents Costly Refinery Shutdown
- Sugar Plant Improves Safety, Productivity with Insights Provided by Temperature Technologies
Specifications:
| Key Specifications | |
| Digital Accuracy | ±0.30°C (±0.54°F) for Pt100 RTD ±0.70°C (±1.26 °F) for Type J Thermocouple |
| Ambient Temperature Effects | 0.003 °C per 1 °C change in ambient temperature for PT100 |
| Stability | 0.1% reading or 0.1°C whichever is greater for 2 years for RTD ±0.1% of reading or 0.1°C, whichever is greater for one year for thermocouples |
| Input | 8 channels (combination of 2-3 wire RTD’s, thermocouples, millivolts and ohms) 4-20 mA inputs using optional connectors |
| Output | FOUNDATION™ fieldbus Manchester-encoded digital signal that conforms to IEC 1158-2 and ISA 50.02 |
| Supply Voltage/Current Consumption | 9.0 to 32.0 V dc; 22ma maximum |
Competitive Advantage:
· Four independently configurable RTD, thermocouple, ohm, millivolt and 4 - 20 mA signals
· Lowers installed cost by eliminating long wire runs to the control room
· Dependable performance by enhancing measurement reliability for trustworthy data
| - | Mount close to process to keep sensor wiring short to minimize effect of electromagnetic interference(EMI) |
| - | Transmitters compensate and filter noise and EMI for stable measurement performance |
· Simplified installation and configuration practices for faster start-ups
| - | Reduction of required loop drawings, eliminates cable trays and large wiring cabinets |
| - | Enhanced user interface makes configuration intuitive for faster configuration and commissioning |
· Fully compatible with WirelessHART networks with greater than 99% data reliability
· Eight user configurable alerts for advanced measurement monitoring
· Temperature sensor diagnostics for continuous monitoring of sensor integrity
· Type 4x, IP66 housings allows for installation in harsh process environments
· Best ambient temperature compensation reduces measurement error in harsh applications, especially for wide fluctuations of ambient temperature
