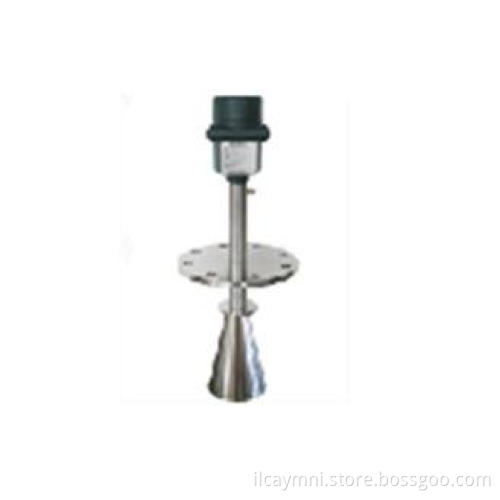

Intelligent radar liquid level transmitters for tank with high frequency
Quick Detail:
- Applicable in the measurement of the solid and liquid.
- Ease of installation, commissioning, maintenance-free.
- Can be measured under vacuum conditions.
- Wide measuring range and pressure range.
- An explosion-proof design is safer.
- Can be equipped with special software component systems.
Description:
TF VT series is a hight frequency digital radar tank level meter apply to hygienic liquid storage and corrosive container, it's small antenna size, easy to install and non-contact radar, no wear, no pollution. Almost no corrosion, bubble effect and not affected by water vapor in the atmosphere, the temperature and pressure changes.
Characteristics
1. Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
2. Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
3. Serious dust environment on the high level meter work has little effect.
4. A shorter wavelength, the reflection of solid surface inclination is better.
5. Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
6. The measuring range is smaller, for a measurement will yield good results.
7. High signal-to-noise ratio, the level fluctuation state can obtain better performance.
8. High frequency, measurement of solid and low dielectric constant of the best choice.
Principle
Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).
Believe you will be satisfied with our product and service if you place a trial order with us. Looking forward to establishing cooperation relationship with your esteemed company.
Applications:
Used for grain bin,oil/ fuel/water/powder tank, liquid
Specifications:
| Model | TF - VT37 | TF - VT47 | TF - VT 57 |
|
Application
|
Erosive liquid, sizing agent, or solid aggregate with simple process conditions
E.g. Water tank Acid and Alkali stand Pulp tank Solid particle Small oil tank |
Corrosive liquid, pulp, solid
Water tank Acid and Alkali stand Pulp tank Solid particle Small oil tank |
Various storage tank or process gauge environment, liquid, pulp and solid
E.g. Crude oil, light oil tank Coal, powder coal tank Pulp tank Solid particles |
| Range of Measurement | 20m | 20m | 50m |
| Process Connection | Thread | Flange | Flange |
| Process Temperature | -40-130°C | -40-150°C | -40-150°C |
| Process Pressure | -1.0-3bar | -1.0-20bar | -1.0-40bar |
| Repeatability | ± 3mm | ± 3mm | ± 3mm |
| Precision | < 0.1% | < 0.1% | < 0.1% |
| Frequency Range | 6.8GHz | 6.8GHz | 6.8GHz |
| Protection Level | EXiaIICT6/IP68 | EXiaIICT6/IP68 | EXiaIICT6/IP68 |
| Signal Output |
4.20mA/ HART(two-wire) |
4.20mA/ HART two-wire) |
4.20mA/ HART(two-wire) |
Competitive Advantage:
1. Competitive Price Offering
2. Special Time Delay Method
3. Stable And Precise Measurement In Very Short Time
