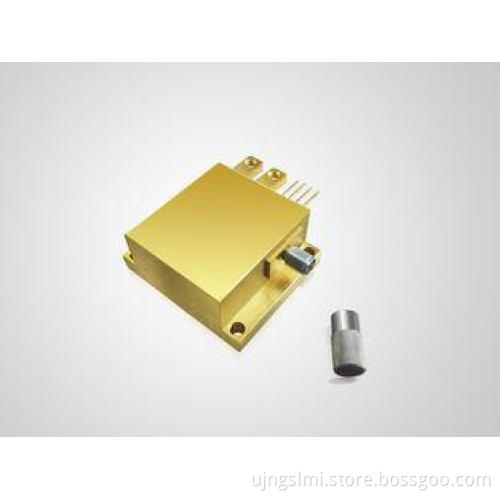

Pump Laser Diode 808nm 30W with 400um 0.22N.A. Fiber
0.22N.A. 808nm 30W Diode Laser Module K808DABCN-30.00W
Features:
30W output power
Standard fiber coupling for 400 μm core diameter
808nm wavelength
Compact package
Application:
Solid-state laser pumping
|
Specifications (25℃) |
Symbol |
Unit |
K808DABCN- 15.00W |
K808DABCN- 30.00W |
|||||
|
Optical Data |
CW-Output Power |
Po |
W |
15 |
30 |
||||
|
Center Wavelength |
λc |
nm |
808 |
||||||
|
Tolerance of λ |
- |
nm |
±3 |
||||||
|
Spectral Width (FWHM) |
△λ |
nm |
<3 |
||||||
|
Temperature Drift of λ |
- |
nm/℃ |
~0.3 |
||||||
|
Connector Data |
Fiber Core Diameter |
Wc |
µm |
400 |
|||||
|
Fiber Numerical Aperture |
N.A. |
- |
0.22 |
||||||
|
Fiber Connector |
- |
- |
SMA-905 |
||||||
|
Electrical Data |
Operating Current |
Iop |
A |
9 |
9.5 |
||||
|
Threshold Current |
Ith |
A |
1.2 |
1.2 |
|||||
|
Conversion Efficiency |
η |
% |
44 |
40 |
|||||
|
Slope Efficiency |
ηD |
W/A |
1.9 |
3.6 |
|||||
|
Operating Voltage |
Vop |
V |
3.8 |
7.8 |
|||||
|
Reverse Voltage |
Vre |
V |
4 |
8 |
|
||||
|
Others |
Operating Temperature |
Top |
℃ |
10~30 |
|||||
|
Storage Temperature |
Tst |
℃ |
-20~70 |
||||||
|
Expected Lifetime |
MTTF |
h |
>10, 000 |
||||||
|
Dimensions |
- |
mm |
~44.5×31.8×18.0 |
||||||
|
Lead Soldering Temperature |
Tis |
℃ |
260(10 sec.) |
||||||
