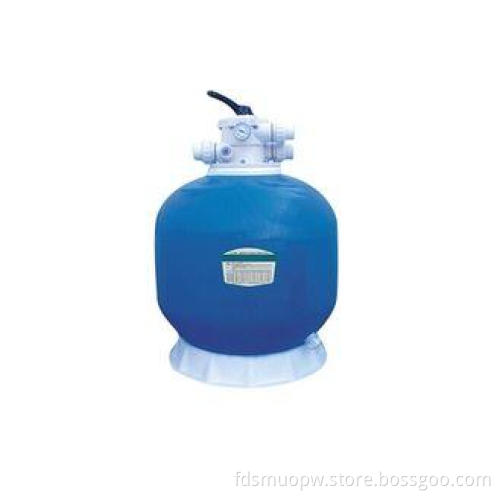

Top Mount Fiberglass Swimming Pool Sand Filters For Pools And Ponds Filtration
Quick Detail:
|
Model |
Material |
Working pressure |
Maximum temperature |
|
ADG series |
fiberglass |
2.5kg/cm² |
50° C(122° F) |
Description:
Top mount sand filters are built to be tougher, longer lasting and better performing. Constructed of polyester resin and non-corrosive fiberglass filament winding, all internal components and connections are injection molded PVC. They produce more filtered water with less pump horsepower. UV-resistance surface allows working under sunshine. Easy-to-use six-position valve make you select any of the valve/filter operation in a proper way.
FEATURES:
Easy to Clean
Suitable for use with Automatic Pool Cleaners
High quality 6 position multi-port valve
Self-sealing barrel unions
Transparent lid for inspection of filtered water
Ring lock design for quick opening and closing, Thereby eliminating
The use of traditional screws
* Use only #20 white silica sand, size range 0.4-0.55mm.
Maximum working pressure: 2.5kg/cm² ; Maximum temperature: 50° C(122° F)
Dimension:
Φ400X730mm(ADG400)
Φ450X800mm(ADG450)
Φ500X840mm(ADG500)
Φ600X940mm(ADG600)
Φ800X1190mm(ADG800)
Φ900X1320mm(ADG900)
Φ1000X1410mm(ADG1000)
Φ1200X1630mm(ADG1200)
Φ1400X1860mm(ADG1400)
|
Model |
Pipe size |
Filter Area |
Design flow |
Sand weight |
Tank volume |
Tank weight |
Valve volume |
Valve weight |
|
(inches) |
m2 |
m3/h |
0.4-0.8mm (kg) |
m3 |
kg |
m3 |
kg |
|
|
ADG400 |
1.5 |
0.11 |
6.0 |
28 |
|
|
|
|
|
ADG450 |
1.5 |
0.14 |
7.0 |
50 |
0.15 |
15 |
0.01 |
2.6 |
|
ADG500 |
1.5 |
0.20 |
10.0 |
80 |
0.20 |
18 |
0.01 |
2.6 |
|
ADG650 |
1.5 |
0.30 |
15.0 |
170 |
0.32 |
25 |
0.01 |
2.6 |
|
ADG700 |
1.5 |
0.37 |
18.5 |
225 |
0.46 |
30 |
0.01 |
2.6 |
|
ADG800 |
2.0 |
0.50 |
25.0 |
380 |
0.68 |
45 |
0.02 |
3.8 |
|
ADG900 |
2.0 |
0.64 |
30.0 |
453 |
0.92 |
50 |
0.02 |
3.8 |
|
ADG1000 |
2.0 |
0.79 |
35.0 |
712 |
1.48 |
65 |
0.02 |
3.8 |
|
ADG1100 |
2.0 |
0.98 |
44.0 |
975 |
1.98 |
70 |
0.02 |
3.8 |
|
ADG1200 |
2.0 |
1.13 |
50.0 |
1220 |
2.42 |
92 |
0.02 |
3.8 |
|
ADG1400 |
2.0 |
1.53 |
76.0 |
1720 |
3.26 |
112 |
0.02 |
3.8 |
Working pressure: 2.5kg/cm2
Maximum temperature: 50 degree
