ID residual current circuit breaker with competitive price
Quick Detail:
Place of Origin: Zhejiang China (Mainland)
Brand Name: JIELI OEM/ODM

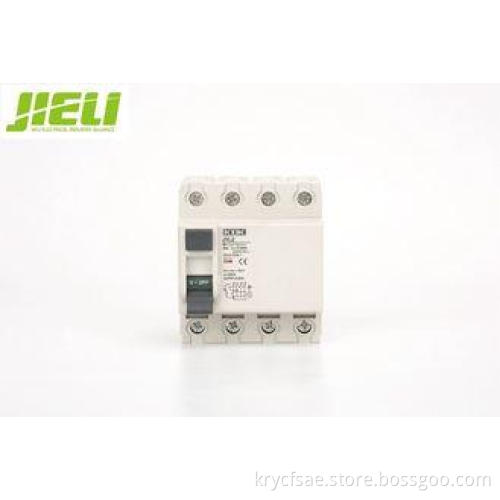

Model Number: JL-JXL residual current circuit breaker
Type: Earth Leakage, Electronic or magnetic residual current circuit breaker
Poles Number:2P/4P
Rated current(A):16-100
Rated voltage(V):230/400
Rated residual non-operating current(mA):0.5 ≤I n
Rated residual operating current(mA):30mA,300mA
Color: White
Point: silver
Residual current off-time:≤0.3sParts:brass/copperWeight:187.5g/pcx
Description:
JL-JXL residual current circuit breaker has two kind of types: Electronic or Magnetic
1.JL-JXL residual current circuit breaker choose the best material.
Excellent product comes from excellent material. Pure copper with excellent quality.
2.Meticulous design
Delicate design on product detail. Seven rivets make product stronger and stripes on handle enable better hand feel.
3.Perfect quality
Never compromise on quality, make perfect product, reach real 6KA.
4.Strong packing
Dedicate packing, improve product's added-value, help you win the market.
Specifications:
|
Product name |
JL-JXL |
|
Standard |
IEC61008/GB16196 |
|
Product Certifications |
CE,CB,3C |
|
Product Function |
Leakage protection, Isolation function |
|
Rated current(A) |
16,25,40,63,100 |
|
Pole No |
1P,2p,3p,4p |
|
Rated voltage(V) |
230V/400V |
|
Rated frequency(Hz) |
50/60 |
|
Sensitivity (In) |
30mA,100mA,300mA |
|
Environment temperature |
-25°C-+60°C |
|
Connection type |
Tunnel style,Pin style,U style |
|
Biggest wiring ability |
35mm2 |
|
Action style |
AC22 |
|
Installation style |
35mm standard 35mm guide |
|
Im,Im(A) |
500 |
|
Inc,Ic(A) |
6000 |
|
Mechanical life |
10000 |
|
Protection degree |
IP20 |
Applications:
JL-JXL is applying to the circuit of AC 50/60Hz, 240V single phase, 415V three-phase and below it for industrial and mining enterprise, building trade, commerce and family. To mainly prevent electric fire and personal casualty accident caused by personal electric shock or leakage of electrified wire netting,.
This residual current circuit breaker is a current-operated, fast leakage protector of pure electromagnetic type, which can break off fault circuit rapidly in order to avoid occurrence of accident. The item is precise in structure, less elements, without auxiliary power and high working reliability. The function of the switch won't be influenced by ambient temperature and lighting. The mutual inductor of the item is used to test vector differential value of passing current, and produces are levant output power and add it differential value of protected circuit of personal electric shock is up to or over leakage operating current, the tripper will act and cut off so that the item will take effect of protection.
