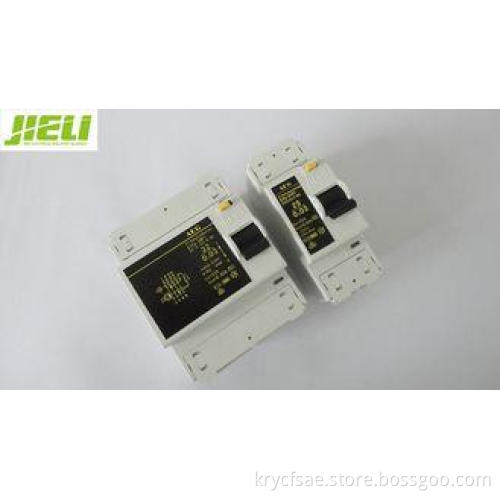

Residual Current Circuit Breaker Rccb With Electro-Magnetic Type , Electronic Type
Quick Detail:
Place of Origin: Zhejiang China (Mainland)
Brand Name: JIELI OEM/ODM
Model Number: JL-A
Type: Residual current
Poles Number: 2P/4P
Rated current(A): 16-100
Rated voltage(V): 230/400
Rated residual operating current(mA): 30mA,300mA
Rated residual non-operating current(mA): 0.5 ≤I n
Color: White
Residual current off-time: ≤0.3s
Point: silver
Parts: brass/copper
Description:
Residual Current Circuit Breaker with over-current protection (Electronic)
JL-A Residual Current circuit breaker provides the function of isolation Switching and earth leakage protection of electrical circuits.
And JL-A Residual Current circuit breaker also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical Circuit fault.
JL-A Residual Current circuit breaker is conformity with GB16917.1,IEC60898-1 standards.
Specifications:
| Product name | JL-A |
| Standard | IEC61008/GB16196 |
| Product certificate | CE/CB/3C etc |
| Rated current(A) | 16-100A |
| Rated voltage(V) | 230/400V |
| Pole No. | 2P.4P. |
| Rated frequency(HZ) | 50/60 |
| Sensitivity(IΔn) | 30mA/100mA/300mA |
| Installation style | standard 35mm guide |
| Mechanical life | 10000 |
| Production function | Leakage protection/Isolation function |
| Production degree | IP20 |
