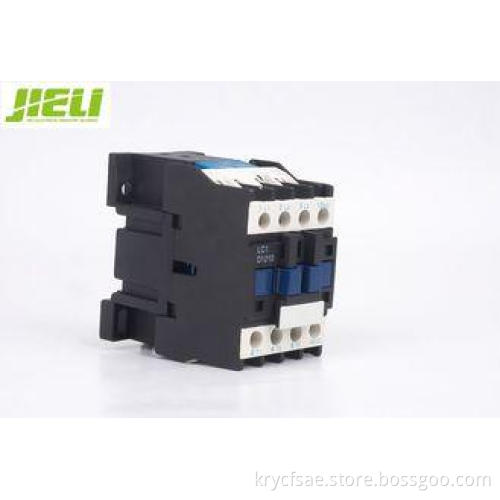

3 Phase UL Telemecanique AC Magnetic Contactor 25A 32A 40A 50A IEC60947-4-1
Quick Detail:
|
Place of Origin: |
Zhejiang China (Mainland) |
Brand Name: |
JIELI |
Model Number: |
JL-LC1-D12 |
|
Electricity Type: |
AC magnetic contactor |
Number of Pole: |
3 |
Phase: |
3 |
|
Main Circuit Rating Voltage: |
220/230V, 380/400V, 415V, 500V, 660/690V |
Main Circuit Rating Current: |
up to 150A |
Standard: |
IEC60947-4-1 |
|
Rated working current: |
up to 150A |
Rated working voltage: |
up to 690V |
Type: |
New / Old type |
Description:
JL-LC1-D series AC magnetic contactor is suitable for frequency 50Hz/60Hz, rated voltage up to 690VAC and rated current up to 150A.
JL-LC1-D series AC magnetic contactor is used for making/breaking electric circuit at a long distance & for frequent starting/stopping & controlling AC motors.
JL-LC1-D series AC magnetic contactor is used in combination with thermal relay to compose a magnetic motor starter.
JL-LC1-D series AC magnetic contactor complies with IEC60947-4-1 standard.
Specifications:
|
Type |
LC1 -D09 |
LC1- D12 |
LC1- D18 |
LC1- D25 |
LC1- D32 |
LC1-D40 |
LC1-D50 |
LC1-D65 |
LC1-D80 |
LC1-D95 |
||
|
Rated working current(A) |
380V |
AC3 |
9 |
12 |
18 |
25 |
32 |
40 |
50 |
65 |
80 |
95 |
|
AC4 |
3.5 |
5 |
7.7 |
8.5 |
12 |
18.5 |
24 |
28 |
37 |
44 |
||
|
660V |
AC3 |
6.6 |
8.9 |
12 |
18 |
21 |
34 |
39 |
42 |
49 |
55 |
|
|
AC4 |
1.5 |
2 |
3.8 |
4.4 |
7.5 |
9 |
12 |
14 |
17.3 |
21.3 |
||
|
Rated heat current(A) |
25 |
25 |
32 |
40 |
50 |
60 |
80 |
80 |
125 |
125 |
||
|
Controllable power(kW) |
220/240V |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
25 |
|
|
380/400V |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
||
|
415V |
4 |
5.5 |
9 |
11 |
15 |
22 |
30 |
37 |
45 |
45 |
||
|
500V |
5.5 |
7.5 |
10 |
15 |
18.5 |
22 |
30 |
37 |
55 |
55 |
||
|
600/690V |
5.5 |
7.5 |
10 |
15 |
18.5 |
30 |
33 |
37 |
45 |
55 |
||
|
Pole |
3,4 |
3,4 |
3 |
3,4 |
3 |
3,4 |
3,4 |
3,4 |
3,4 |
3,4 |
||
|
Rated working voltage(V) |
380,660 |
|||||||||||
|
Rated insulation voltage(V) |
660 |
|||||||||||
|
Mechanical life x104 |
1000 |
1000 |
1000 |
1000 |
800 |
800 |
800 |
800 |
600 |
600 |
||
|
Electrical life |
AC3x104 |
100 |
100 |
100 |
100 |
80 |
80 |
80 |
80 |
60 |
60 |
|
|
AC4x104 |
20 |
20 |
20 |
20 |
20 |
15 |
15 |
15 |
10 |
10 |
||
|
Operating frequency |
Electrical life |
AC3x104 |
1200 |
1200 |
1200 |
1200 |
600 |
600 |
600 |
600 |
600 |
600 |
|
AC4x104 |
300 |
|||||||||||
|
Mechanical life x104 |
3600 |
|||||||||||
|
Rated controlled voltage (V) |
24-660 |
|||||||||||
|
Working voltage |
Close |
DC% |
0.85-1.1Us |
|||||||||
|
Open |
AC% |
0.10-0.75Us |
||||||||||
