80A 90A 100A IEC60898 3 Pole Circuit Breaker With Safety Di
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhejiang, China (Mainland) |
|---|

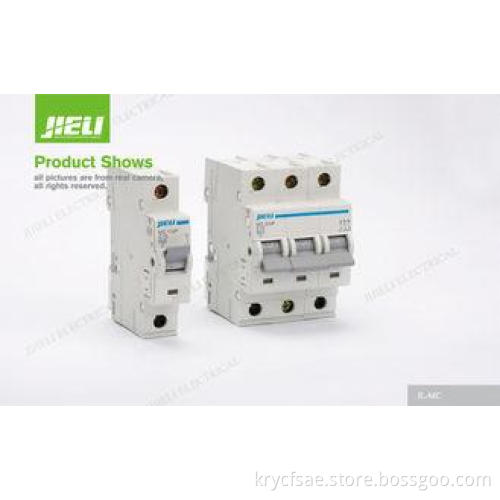

IEC60898 3 Pole Circuit Breaker With Safety Disconnect Switch , 20A Circuit Breaker
Quick Detail:
Place of Origin: Zhejiang China (Mainland)
Brand Name: JIELI
Model Number: JL-3P
Type: Mini
Color: Black and white
Poles Number: 1P.2P,3P
Rated current (A): 1,2,3,4,6,10,16,20,25,32,40,50,63,70A,80A,90A,100A
Rated voltage (V): AC 240/415V
Rated frequency: 50/60Hz
Description:
1. JL-3P 3 phase circuit breaker is for protection against overload and short circuits in the electrical distribution system.
2. JL-3P 3 phase circuit breaker can be used in domestic, commercial and light industrial installations.
3. JL-3P 3 phase circuit breaker conforms to IEC 60898.
4. The degree of protection of JL-3P 3 phase circuit breaker is IP20.
5. JL-3P 3 phase circuit breaker plugs in Mini circuit breaker black.
6. JL-3P 3 phase circuit breaker is in good quality and price is reasonable.
Applications:
JL-3P 3 phase circuit breaker applies to industry ,commercial ,lighting and electrical machine distribution system with AC415V,50/60Hz ,rated working current to 100A protect against overload and short circuit ,The item is installed into plug-in type mounting base .
Specifications:
|
Standard |
IEC60898,BS3781-1 |
|
|
Number of poles |
1P.2P,3P,4P |
|
|
Rated current(In) |
1,2,3,4,6,10,16,20,25,32,40,50,63,70A,80A,90A,100A |
|
|
Rated voltage(Un) |
AC240/415V |
|
|
Rated frequency |
50/60Hz |
|
|
Tripping curve |
B,C,D |
|
|
Release action characteristics |
Time delay |
1.13In≥1h non-trip |
|
1.45In<1h trip |
||
|
2.55In 1S<60S trip |
||
|
Instantaneous |
5In≥0.1S non-trip |
|
|
10In<0.1 trip |
||
|
Magnetic releases operate |
B curve: between 3 and 5In |
|
|
C curve: between 5 and 10In |
||
|
D curve: between 10 and 14In |
||
|
Rated breaking capacity(Lcn) |
3000A,4500A,6000A |
|
|
Endurance |
≥2500 |
|
|
Circumstance temperature |
-5ºC+40ºC |
|
|
Electrical life |
≥6000times |
|
|
Mechanical life |
20000 times |
|
|
Tropical ration |
Treatmen 2(RH95%,at 55ºC) |
|
|
Protection degree |
IP20 |
|
Competitive Advantage:
The performance of JL-3P 3 phase circuit breaker is good, and JL-3P 3 phase circuit breaker’electrical life is 4000,the mechanical life of 3 phase circuit breaker is up to 20000.
JL-3P 3 phase circuit breaker has a ready market in all countries.
JL-3P 3 phase circuit breaker,the magnetic tripping curve of JL-3P 3 phase circuit breaker are:B(3-5In),C(5-10In),D(10-20In)
The rated capacity of shortcircuit(ICU) is 6000.
Our service:
1. Samples: provide free samples.
2. Package: all products will be well packed before shipping.
3. Warranty: all products have 2-5 years warranty.
4. Delivery: with 30days after received the deposit.
5. Provide OEM and ODM service.
6. Any of your idea we can help you to design and put it into production.
7. Provide helping for building factories, such as: spare parts, technical questions, financial matter,
management problem , approach of sales...
