108keys Backlight Silicone Industrial Keyboard With Numeric
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|

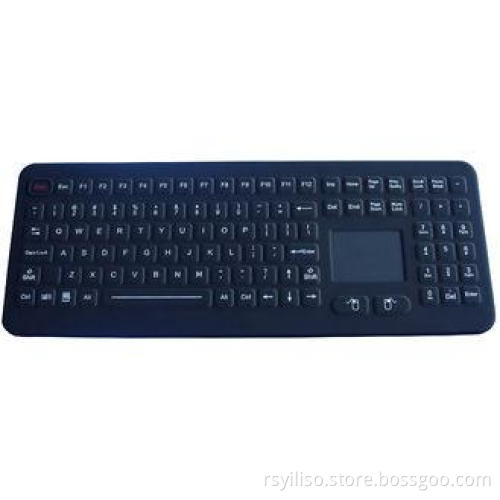

108keys Backlight Silicone Industrial Keyboard With Numeric Keypads
Special Features:
1. IP65 rated ruggedized industrial silicone rubber keyboard with sealed touchpad.
2. Integrated numeric keypad and function keys
3. Adjustable industrial backlight optional.
4. Industrial PCB with carbon-on-gold key switch technology with stroke 1.50mm with tactile feeling for fast and accurate data input without any noise.
5. Top panel mounted solutions with ruggedized robust polycarbonate frame with mounting studs
6. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
7. PS/2, USB connection cables that plug directly into computer like keyboard operations.
8. Enclosure: industrial silicone, stainless steel plate optional.
9. With durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment,
10. Clean key for easy cleaning.
Applications:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.
A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
E: OTHER INDUSTRIES
Specification
MECHANICAL DATA | |
Key | 108 keys |
Key top style | Protuberant rectangular keys with tactile feeling. |
Key Size | 12.0mm X 13.0mm for normal keys, |
Key travel | 1.5mm |
Actuation Force | 0.8 N+/-0.1N for normal key with 12.0mm x 13.0mm(pressure point), 1.6 N+/-0.1N for key 23.4mm x 13.0mm (pressure point) |
X/Y position sensing resolution | 40 counts/mm |
X/Y position reporting | Relative |
Switch life | more than 10 million of operations |
Output(self-detectable depending on cable) | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Cable Length | 2.5m |
G.W. | 1.50KGs |
Dimensions: | 396.0mm x 250.0mm (L x W) |
ELECTRICAL DATA | |
Supply Voltage | 5 VDC ±0.25V |
Current Rating | 30mA (non-backlight) , 150mA (with backlight on) |
| IEC61000-4-2:2008; IEC61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 |
EMI: | EN55022: 2010 |
EMS: | EN55024: 2010 |
Immunity: | EN 50082-1 |
Lifespan | > 3 years |
Switch Contact Material: | Carbon-on-Gold key switch technology with gold PCB. |
Interface: | PS2, USB available. |
OS: | All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20oC to +60oC(industrial level);-40oC to +85oC(military level) |
Storage temperature | -30oC to +70oC(industrial level);-55oC to +150oC(military level) |
Operating RH | 100% |
Atmospheric pressure | 60-106Kpa |
Shock | 3x11 ms pulses of 50g on each of 3 axes |
Vibration | POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours |
Printed Circuit Board | 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V |
RELIABILITY | |
Certification | RoHS Compliant, CE and FCC, IP65, ESD |
Protection Level | IP65(front panel);NEMA 6P |
Key Lifespan | >10 million actuations |
MTBF | >50000H |
MTTR | <30min |
