Ruggedized Desk Top Silicone Industrial Keyboard With Optic
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|

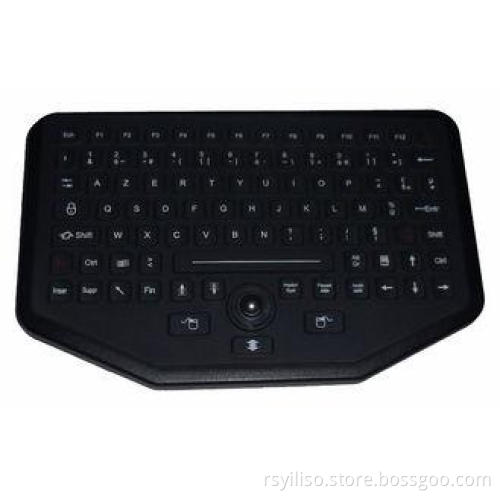

Ruggedized Desk Top Silicone Industrial Keyboard With Optical Trackball
Special Features:
1. IP68dynamic sealed & ruggedized industrial silicone rubber Industrial keyboard
2. IP68 dynamic washable 16.0mm optical trackball module
3. Desk top mounting
4. Backlight optional
5. With durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment
6. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
7. PS/2, USB connection cables that plug directly into computer like keyboard operations.
8. Enclosure: industrial silicone, Robust ABS Polycarbonate Case, Aluminum is optional(rear side)
9. Low-profile keys for easy cleaning
Applications:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its
numeric pad allows for easy data entry.
A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing
environments, warehouses
E: OTHER INDUSTRIES
Specification
|
MECHANICAL DATA |
|
|
Key |
93 keys |
|
Key top style |
Protuberant rectangular keys with tactile feeling. |
|
Tracker ball |
IP68, 16.0mm |
|
Key Size |
12.0mm X 13.0mm for normal keys, 23.4mm x 13.0mm for enter key 68.0mm x 13.0mm for space bar key. |
|
Key travel |
1.5mm |
|
Switch life |
more than 10 million of operations |
|
G.W. |
1.2KGs |
|
Dimensions: |
304.40mmx195.8mmx47.3mm(22.3)mm |
|
ELECTRICAL DATA |
|
|
Supply Voltage |
+5V DC +/-5% |
|
Current Rating |
30mA (non-backlight), 150mA (with backlight on) |
|
EMC Standard: |
It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 |
|
EMI: |
EN 50081-1 |
|
Immunity: |
EN 50082-1 |
|
Lifespan |
> 3 years |
|
Switch Contact Material: |
Carbon-on-Gold key switch technology with gold PCB. |
|
Interface: |
PS2, USB available. |
|
OS: |
All windows, Linux, Unix, Mac OSX |
|
ENVIRONMENTAL ADAPTABILITY |
|
|
Operating temperature |
-20oC to +60oC(industrial level);-40oC to +85oC(military level) |
|
Storage temperature |
-30oC to +70oC(industrial level);-55oC to +150oC(military level) |
|
Operating RH: |
30%-90% |
|
Atmospheric pressure |
60-106Kpa |
|
Shock |
3x11 ms pulses of 50g on each of 3 axes |
|
Vibration |
POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours |
|
Printed Circuit Board |
94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V |
|
RELIABILITY |
|
|
Certification |
RoHS Compliant, CE and FCC, IP68,ESD |
|
Protection Level |
IP68,NEMA 6P |
|
Key Lifespan |
>10 million actuations |
|
MTBF |
>50000H |
|
MTTR |
<30min |
