12 Function Keys Silicone Industrial Keyboard With Washable
  • 12 Function Keys Silicone Industrial Keyboard With Washable
12 Function Keys Silicone Industrial Keyboard With Washable

12 Function Keys Silicone Industrial Keyboard With Washable

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen,China
Product Description
Product Description

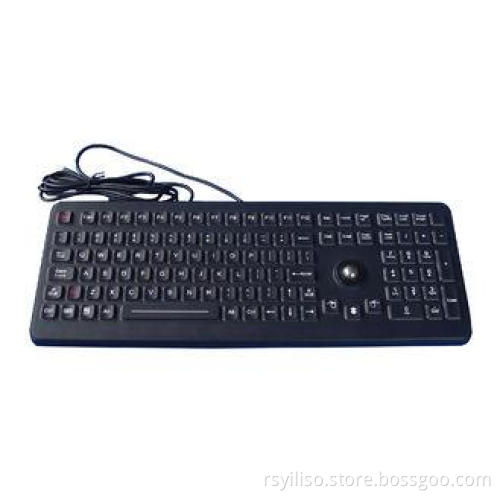

12 Function Keys Silicone Industrial Keyboard With Washable Trackball

Special Features:


1. IP68 dynamic rated 16.0mm optical trackball module

2. With 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation
3. Integrated washable trackball and function keys
4. Backlight optional
5. CE, FCC, RoHS, IP68, ESD

6. Clean key--Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime

7. Special durable-coating for excellent mechanical and chemical resistance

8. PS/2, USB connection cables that plug directly into computer like keyboard operations.


Applications:


This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.
A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
E: OTHER INDUSTRIES


Specification

MECHANICAL DATA

Key

106keys

Key top style

Protuberant rectangular keys with tactile feeling.

Key Size

12.0mm X 13.0mm for normal keys,
23.4mm x 13.0mm for enter key
68.0mm x 13.0mm for space bar key.

Key travel

1.5mm

Actuation Force

0.8 N+/-0.1N forkey with 12.0mm x 13.0mm(pressure point),
1.6 N+/-0.1N for key 23.4mm x 13.0mm (pressure point)

X/Y position sensing resolution

40 counts/mm

X/Y position reporting

Relative

Switch life

more than 10 million of operations

Output(self-detectable depending on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Cable Length

2.5m

G.W.

1.50KGs

Dimensions:

396.0mm x 150.0mm x 23.0mm (L x W x H)

ELECTRICAL DATA

Supply Voltage

5 VDC ±0.25V

Current Rating

20mA


EMC Standard:

IEC61000-4-2:2008; IEC61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004

EMI:

EN55022: 2010

EMS:

EN55024: 2010

Immunity:

EN 50082-1

Lifespan

> 3 years

Switch Contact Material:

Carbon-on-Gold key switch technology with gold PCB.

Interface:

PS2, USB available.

OS:

All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20oC to +60oC(industrial level);-40oC to +85oC(military level)

Storage temperature

-30oC to +70oC(industrial level);-55oC to +150oC(military level)

Operating RH

100%

Atmospheric pressure

60-106Kpa

Shock

3x11 ms pulses of 50g on each of 3 axes

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
Flammability

Printed Circuit Board

94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V

RELIABILITY

Certification

RoHS Compliant, CE and FCC,IP68 ESD

Protection Level

IP68;NEMA 6P

Key Lifespan

>10 million actuations

MTBF

>50000H

MTTR

<30min
