420mm industrial kiosk metal keyboard with stainless steel
  • 420mm industrial kiosk metal keyboard with stainless steel
420mm industrial kiosk metal keyboard with stainless steel

420mm industrial kiosk metal keyboard with stainless steel

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen,China
Product Description
Product Description

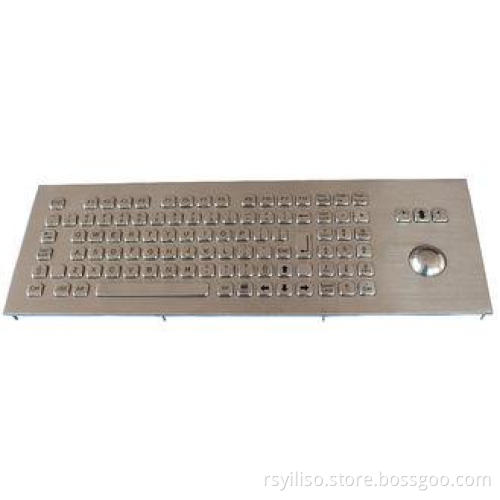

420mm industrial kiosk metal keyboard with stainless steel trackball

Special Features:

1. 100 Keys Compact Format IP65 dynamic vandal Proof Stainless Steel industrial Keyboard with full keyboard functionalities

2. 38.0mm trackball, 3 kinds trackball module optional: IP65 static mechanical trackball module with 400 DPI (MTB); IP68 dynamic washable optical trackball module with 800 DPI (OTB); IP68 dynamic washable laser trackball module with 1200 DPI (LTB)

3. IP65 dynamic vandal proof stainless steel industrial kiosk keyboard with trackball

4. function keys F1, F2..F10, F11, F12 are on the top panel for easy operation

5. numeric keypad (optional PINPAD with Encryption Electronics Controller supporting DES/TDES)

6. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling

7. stainless steel top plate with threaded bolts for top panel mounting solution

8. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise

9. Complete electronic modules including controller in close consultation with our customers are available

10. PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver

11. Any customized language layout for the keyboard is available

Optional Trackball Modules:

Product Classifications and Descriptions

Interface

Trackball IP rated

K-TEK-A420-MTB-KP-FN

Keyboard;

400 DPI Mechanical Trackball;

Adjustable Backlight is optional

USB/PS2

IP65 static

K-TEK-A420-OTB-KP-FN

Keyboard;

800 DPI Optical Trackball;

Adjustable Backlight is optional

USB/PS2

IP68 dynamic

K-TEK A420-LTB-KP-FN

Keyboard;

1200 DPI Laser Trackball;

Adjustable Backlight is optional

USB/PS2

IP68 dymanic

Other language versions/interfaces/configuration available on request

Applications:

This Keyboard is mainly targeted for use for:

A: unsupervised or semi -supervised positions of varied access applications,

B: internet terminals and information kiosks at universities,

C: shopping malls, hotels, airports, railway stations and other public areas,

D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Specifications:

MECHANICAL DATA

Key

100 keys, super quality SUS304 brushed stainless steel

Key top style

Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys,

14.0mm x 28.0mm for enter key,

14.0mm x 100mm for space bar.

Key travel

2.0mm

Tracker ball

38.1mm (1.5’) diameter,

IP65 static 400DPI mechanical trackball module,

IP68 dynamic washable 800DPI optical trackball module,

IP68 dynamic washable 1200 DPI laser trackball module

Switch life

more than 10 million of operations

Actuation Force

0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point)

1.2N +/-0.1N for key 14.0mm x 28.0mm (pressure point)

Front Plate

1.5mm thickness super quality brushed stainless steel

Back Plate

3.0mm thickness brushed & oxidized aluminum

Actuator/keys materials

stainless steel

G.W.

2.20KGs

Dimensions

420.0mm x 145.0mm

ELECTRICAL DATA

Supply Voltage

+5V DC +/-5%

Current Rating

appr. 30mA

EMC Standard:

It is compliance with the council IEC 61000-4-2:2008;

IEC 61000-4-3:2006+AI:2007+A2:2010;

IEC 61000-4-4:2004

EMI:

EN 55022: 2010

EMS:

EN 55024:2010

Lifespan

> 5 years

Switch Contact Material:

Carbon-on-Gold key switch technology PCB.

If needed, numeric keypad is available to be with encryption electronics controller

supporting DES/Triple DES.

Interface:

Interface: PS2, USB available, RS232 for EPP

OS:

All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20oC to +60oC

Storage temperature

-30oC to +70oC

Operating RH

30-90%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at + 40oC

21 days, IEC 60512-6

Dry heat test at + 85oC

10 days, IEC 60512-6

RELIABILITY

Certification

RoHS Compliant, CE and FCC,IP65,ESD.

Protection Level

IP65(front panel)

Vandal resistant

IK09

Key Lifespan

>10 million actuations

MTBF

>50000H

MTTR

<30min
