Energy saving Waterproof Led Flood Lights 80W for outdoor S
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|

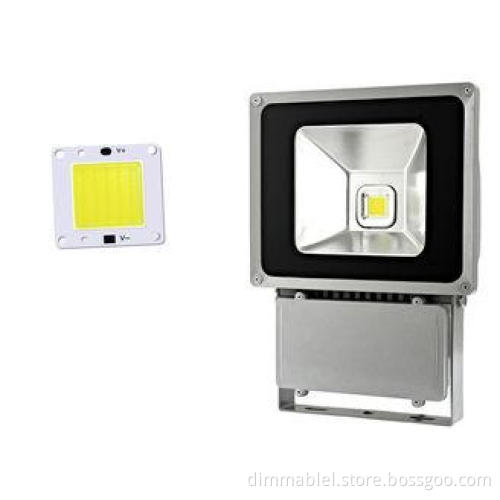

Energy saving Waterproof Led Flood Lights 80W for outdoor Stadium
Description:
- Solar-wind power/ PIR / Dimmable/ RGB/ Emergency and DMX512 optional
- Warranty: 3years
- CE/ Rohs/ VDE/ SAA standard
- Power Consumption :1x80W
- LED Chip: 45Mil Bridgelux
- Luminous Efficiency: 100-110lm/w
- Colour Temperature: 2700-7000K
- Input Voltage: AC100-240V & DC12-24V
- CRI: >Ra80
- IP 65
80W LED floodlight Specification:
|
Input Voltage |
AC90V~265V |
||
|
Frequence Range |
50Hz~60Hz |
||
|
Total Harmonic Distortion |
≤ 9 % |
||
|
Power Factor |
≥0.95 |
||
|
Power Efficiency |
＞93 % |
||
|
LED Working Voltage |
DC30~34V |
||
|
The qty of led |
1 pc |
||
|
Led Consumption |
80W |
||
|
System Consumption |
86W |
||
|
Led Luminous Efficiency |
80-100 Lm /W |
||
|
Led Initial Flux |
7800 Lm |
||
|
lamp’s Efficiency |
＞91 % |
||
|
Average Illuminance |
5M |
170Lux |
|
|
|
6M |
118Lux |
|
|
|
7M |
87Lux |
|
|
Illuminance Area |
5M |
The irradiation Are is a circular with 6.3M Diameter |
|
|
|
6M |
The irradiation Are is a circular with 7.6M Diameter |
|
|
|
7M |
The irradiation Are is a circular with 8.8M Diameter |
|
|
Illuminance Uniformity |
＞0.5 |
||
|
Color Temperature |
Detail information refer to above LED parameters table |
||
|
Color Rendering Index |
Ra≥75 |
||
|
Light Distribution |
symmetric expression / circular light spot |
||
|
Light Design |
LED +The reflectors second light distribution |
||
|
LED Junction Temperature |
≤70℃ |
||
|
Working Temperature |
-25℃ ~ +55℃ |
||
|
Storage Temperature |
-25℃ ~ +65℃(25℃is the optional) |
||
|
IP Grade |
IP65 |
||
|
Net weight |
5.4Kg |
||
|
Working Life-span |
50000H |
||
|
Power line |
1mm2three-core cord VDE
|
||
|
Connect wire |
Brown |
L |
|
|
|
Blue |
N |
|
|
|
Yellow/Green |
G |
|
|
(The color of the lamp shell ) |
black & Silver-White |
||
|
certificate |
CE ROHS |
||
Why Choose us?
1. We are a factory.
2. We are manufacturing led indoor and outdoor lights, best production capability ,best quality control, Best Service.
3. 100% inspection Before Shippment.
4. RoHS/CE/FCC , competitve price.
Advantages:
- Experienced Staff
- Green Product
- Guarantee/Warranty
- International Approvals
- Packaging
- Price
- Product Features
- Product Performance
- Quality Approvals
- Service
- Small Orders Accepted
- Excellent heat dissipation
- Low energy consumption
- Long lifespan and high luminance
- Easy to install and use
- Environment-friendly
Application:
1. Landscape Lighting
2. stage cast light
3. Architectural Lighting
4. Billboard
5. Tunnel lighting
6. Bars, discos and other entertainment mood lighting
