High powered ROHS 10W Waterproof Led Flood Lights outdoor l
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | SHENZHEN CHINA |
|---|

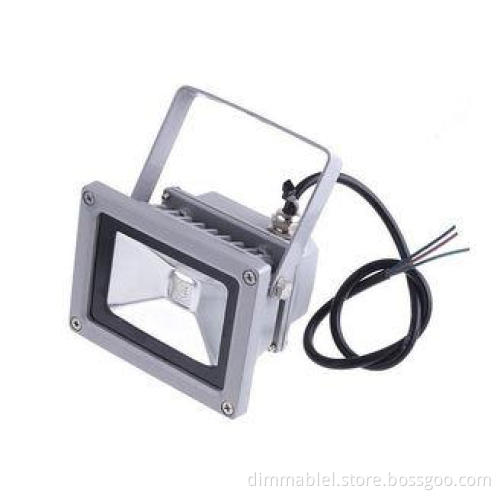

High powered ROHS 10W Waterproof Led Flood Lights outdoor led floodlight
Ableled floodlight Description:
- Solar-wind power/ PIR / Dimmable/ RGB/ Emergency and DMX512 optional
- Warranty: 3years
- CE/ Rohs/ VDE/ SAA standard
- Power Consumption :1x10W
- LED Chip: 45Mil Bridgelux
- Luminous Efficiency: 100-110lm/w
- Colour Temperature: 2700-7000K
- Input Voltage: AC100-240V & DC12-24V
- CRI: >Ra80
- IP 65
10W led floodlight specification:
|
Input Voltage |
AC90V~265V |
||
|
Frequence Range |
50Hz~60Hz |
||
|
Total Harmonic Distortion |
≤ 9 % |
||
|
Power Factor |
≥0.95 |
||
|
Power Efficiency |
＞93 % |
||
|
LED Working Voltage |
DC30~34V |
||
|
The qty of led |
1 pc |
||
|
Led Consumption |
10 W |
||
|
System Consumption |
11W |
||
|
Led Luminous Efficiency |
80-100 Lm /W |
||
|
Led Initial Flux |
1000 Lm |
||
|
lamp’s Efficiency |
＞91 % |
||
|
Average Illuminance |
1M |
397Lux |
|
|
|
2M |
99.5Lux |
|
|
|
3M |
45Lux |
|
|
Illuminance Area |
1M |
The irradiation Are is a circular with 2.8M Diameter |
|
|
|
2M |
The irradiation Are is a circular with4.8M Diameter |
|
|
|
3M |
The irradiation Are is a circular with 7.2M Diameter |
|
|
Illuminance Uniformity |
＞0.5 |
||
|
Color Temperature |
Detail information refer to above LED parameters table |
||
|
Color Rendering Index |
Ra≥75 |
||
|
Light Distribution |
symmetric expression / circular light spot |
||
|
Light Design |
LED +The reflectors second light distribution |
||
|
LED Junction Temperature |
≤70℃ |
||
|
Working Temperature |
-25℃ ~ +55℃ |
||
|
Storage Temperature |
-25℃ ~ +65℃(25℃is the optional) |
||
|
IP Grade |
IP65 |
||
|
Net weight |
0.85Kg |
||
|
Working Life-span |
50000H |
||
|
Power line |
1mm2three-core cord VDE
|
||
|
Connect wire |
Brown |
L |
|
|
|
Blue |
N |
|
|
|
Yellow/Green |
G |
|
|
(The color of the lamp shell ) |
black & Silver-White |
||
|
certificate |
CE ROHS |
||
competitive advantage:
Solar-wind power/ PIR / Dimmable/ RGB/ Emergency and DMX512 optional
Fast delivery: Lead time less than 1000pcs: 5-7days
Warranty: 3years
Our Service:
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Quotation are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information
Application:
Ableled floodlights are widely used in factory, Gym, dock, billboard, building, tunnel, landscape, city lighting projects and other public places.
