PIR sensor / Dimmable ledoutdoorlandscapefloodlights /10w
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|

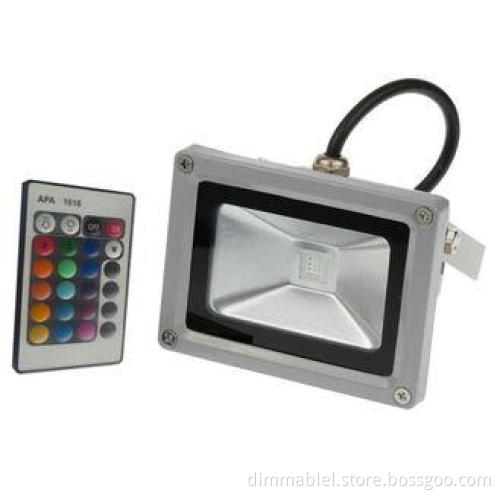

PIR sensor / Dimmable led outdoor landscape flood lights /10w led floodlight
Specifications :
|
Input Voltage |
AC90V~265V |
||
|
Frequence Range |
50Hz~60Hz |
||
|
Total Harmonic Distortion |
≤ 9 % |
||
|
Power Factor |
≥0.95 |
||
|
Power Efficiency |
＞93 % |
||
|
LED Working Voltage |
DC30~34V |
||
|
The qty of led |
1 pc |
||
|
Led Consumption |
10 W |
||
|
System Consumption |
11W |
||
|
Led Luminous Efficiency |
80-100 Lm /W |
||
|
Led Initial Flux |
1000 Lm |
||
|
lamp’s Efficiency |
＞91 % |
||
|
Average Illuminance |
1M |
397Lux |
|
|
|
2M |
99.5Lux |
|
|
|
3M |
45Lux |
|
|
Illuminance Area |
1M |
The irradiation Are is a circular with 2.8M Diameter |
|
|
|
2M |
The irradiation Are is a circular with4.8M Diameter |
|
|
|
3M |
The irradiation Are is a circular with 7.2M Diameter |
|
|
Illuminance Uniformity |
＞0.5 |
||
|
Color Temperature |
Detail information refer to above LED parameters table |
||
|
Color Rendering Index |
Ra≥75 |
||
|
Light Distribution |
symmetric expression / circular light spot |
||
|
Light Design |
LED +The reflectors second light distribution |
||
|
LED Junction Temperature |
≤70℃ |
||
|
Working Temperature |
-25℃ ~ +55℃ |
||
|
Storage Temperature |
-25℃ ~ +65℃(25℃is the optional) |
||
|
IP Grade |
IP65 |
||
|
Net weight |
0.85Kg |
||
|
Working Life-span |
50000H |
||
|
Power line |
1mm2three-core cord VDE
|
||
|
Connect wire |
Brown |
L |
|
|
|
Blue |
N |
|
|
|
Yellow/Green |
G |
|
|
(The color of the lamp shell ) |
black & Silver-White |
||
|
certificate |
CE ROHS |
||
Competitive Advantages:
- Experienced Staff
- Green Product
- Guarantee/Warranty
- International Approvals
- Packaging
- Price
- Product Features
- Product Performance
- Quality Approvals
- Service
- Small Orders Accepted
Description:
- Solar-wind power/ PIR / Dimmable/ RGB/ Emergency and DMX512 optional
- Warranty: 3years
- CE/ Rohs/ VDE/ SAA standard
- Power Consumption :1x10W
- LED Chip: 45Mil Bridgelux
- Luminous Efficiency: 100-110lm/w
- Colour Temperature: 2700-7000K
- Input Voltage: AC100-240V & DC12-24V
Features:
- Lamp luminous flux: 1000 ±5%lm
- Beam angle: 120°
- Size diameter: 115*86*105mm
- PF: >0.9%
- Lamp body material: aluminum
- Color temperature (CCT): 2700-7300K
- Working temperature: -40 to 55°C
- Working lifespan: 25,000 hours
| Model | Body materials | Wattage | Input Voltage | Lumen | Angle | Size (mm) |
| AFL-10W | Aluminum | 10 ±0.5W | AC100-240V & DC12-24V | 1000 ±5%lm | 120° | 115*86*105 |
Application:
Ableled floodlights are widely used in advertisement board, factory, Gym, dock, billboard, building, tunnel, landscape, city lighting projects and other public places.
