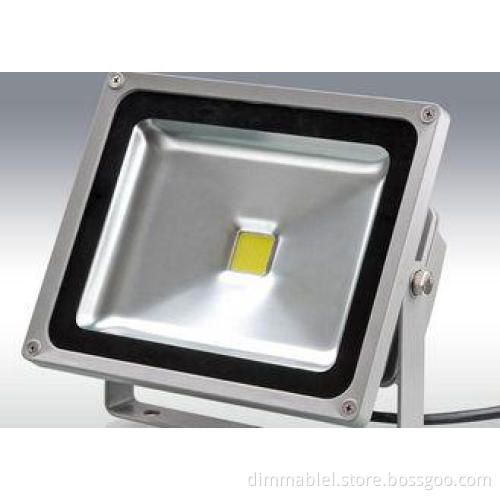

Garden super bright outdoor led flood lights , RGB led floodlight 20w
Ableled floodlight Description:
- Solar-wind power/ PIR / Dimmable/ RGB/ Emergency and DMX512 optional
- Warranty: 3years
- CE/ Rohs/ VDE/ SAA standard
- Power Consumption :1x20W
- LED Chip: 45Mil Bridgelux
- Luminous Efficiency: 100-110lm/w
- Colour Temperature: 2700-7000K
- Input Voltage: AC100-240V & DC12-24V
- CRI: >Ra80
- IP 65
competitive advantage:
Solar-wind power/ PIR / Dimmable/ RGB/ Emergency and DMX512 optional
Fast delivery: Lead time less than 1000pcs: 5-7days
Warranty: 3years
Application:
Ableled floodlights are widely used in factory, Gym, dock, billboard, building, tunnel, landscape, city lighting projects and other public places.
20W led floodlight specification:
|
Input Voltage |
AC90V~265V |
||
|
Frequence Range |
50Hz~60Hz |
||
|
Total Harmonic Distortion |
≤ 9 % |
||
|
Power Factor |
≥0.95 |
||
|
Power Efficiency |
＞93 % |
||
|
LED Working Voltage |
DC30~34V |
||
|
The qty of led |
1 pc |
||
|
Led Consumption |
20 W |
||
|
System Consumption |
22W |
||
|
Led Luminous Efficiency |
80-100 Lm /W |
||
|
Led Initial Flux |
2000 Lm |
||
|
lamp’s Efficiency |
＞91 % |
||
|
Average Illuminance |
2M |
156Lux |
|
|
|
3M |
70Lux |
|
|
|
4M |
40Lux |
|
|
Illuminance Area |
2M |
The irradiation Are is a circular with 6.0M Diameter |
|
|
|
3M |
The irradiation Are is a circular with9.0M Diameter |
|
|
|
4M |
The irradiation Are is a circular with 12.0M Diameter |
|
|
Illuminance Uniformity |
＞0.5 |
||
|
Color Temperature |
Detail information refer to above LED parameters table |
||
|
Color Rendering Index |
Ra≥75 |
||
|
Light Distribution |
symmetric expression / circular light spot |
||
|
Light Design |
LED +The reflectors second light distribution |
||
|
LED Junction Temperature |
≤70℃ |
||
|
Working Temperature |
-25℃ ~ +55℃ |
||
|
Storage Temperature |
-25℃ ~ +65℃(25℃is the optional) |
||
|
IP Grade |
IP65 |
||
|
Net weight |
1.6Kg |
||
|
Working Life-span |
50000H |
||
|
Power line |
1mm2three-core cord VDE |
||
|
Connect wire |
Brown |
L |
|
|
|
Blue |
N |
|
|
|
Yellow/Green |
G |
|
|
(The color of the lamp shell ) |
black & Silver-White |
||
|
certificate |
CE ROHS |
||
