Waterproof 100 watt led flood light IP65 , led industrial f
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|

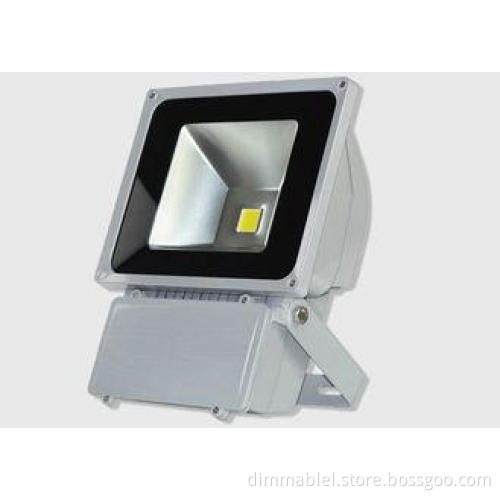

Waterproof 100 watt led flood light IP65 , led industrial flood lights
why Choose us?
1. We are a factory.
2. We are manufacturing led indoor and outdoor lights, best production capability ,best quality control, Best Service.
3. 100% inspection Before Shippment.
4. RoHS/CE , competitve price.
Description:
- Solar-wind power/ PIR / Dimmable/ RGB/ Emergency and DMX512 optional
- Warranty: 3years
- CE/ Rohs/ VDE/ SAA standard
- Power Consumption :1x100W
- LED Chip: 45Mil Bridgelux
- Luminous Efficiency: 100-110lm/w
- Colour Temperature: 2700-7000K
- Input Voltage: AC100-240V & DC12-24V
- CRI: >Ra80
- IP 65
100W LED floodlight Specification:
|
Input Voltage |
AC90V~265V |
||
|
Frequence Range |
50Hz~60Hz |
||
|
Total Harmonic Distortion |
≤ 9 % |
||
|
Power Factor |
≥0.95 |
||
|
Power Efficiency |
＞93 % |
||
|
LED Working Voltage |
DC30~34V |
||
|
The qty of led |
1 pc |
||
|
Led Consumption |
98 W |
||
|
System Consumption |
105W |
||
|
Led Luminous Efficiency |
80-100 Lm /W |
||
|
Led Initial Flux |
9800 Lm |
||
|
lamp’s Efficiency |
＞91 % |
||
|
Average Illuminance |
6M |
137Lux |
|
|
|
7M |
100Lux |
|
|
|
8M |
77Lux |
|
|
Illuminance Area |
6M |
The irradiation Are is a circular with 7.5M Diameter |
|
|
|
7M |
The irradiation Are is a circular with 8.6M Diameter |
|
|
|
8M |
The irradiation Are is a circular with 9.8M Diameter |
|
|
Illuminance Uniformity |
＞0.5 |
||
|
Color Temperature |
Detail information refer to above LED parameters table |
||
|
Color Rendering Index |
Ra≥75 |
||
|
Light Distribution |
symmetric expression / circular light spot |
||
|
Light Design |
LED +The reflectors second light distribution |
||
|
LED Junction Temperature |
≤70℃ |
||
|
Working Temperature |
-25℃ ~ +55℃ |
||
|
Storage Temperature |
-25℃ ~ +65℃(25℃is the optional) |
||
|
IP Grade |
IP65 |
||
|
Net weight |
5.4Kg |
||
|
Working Life-span |
50000H |
||
|
Power line |
1mm2three-core cord VDE
|
||
|
Connect wire |
Brown |
L |
|
|
|
Blue |
N |
|
|
|
Yellow/Green |
G |
|
|
(The color of the lamp shell ) |
black & Silver-White |
||
|
certificate |
CE ROHS |
||
Main Export Markets:
- Eastern Europe
- North America
- Mid East/Africa
- Central/South America
- Asia
- Western Europe
- Australasia
competitive advantage:
Solar-wind power/ PIR / Dimmable/ RGB/ Emergency and DMX512 optional
Fast delivery: Lead time less than 1000pcs: 5-7days
Warranty: 3years
Our Service:
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Quotation are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information
Application:
Ableled floodlights are widely used in factory, Gym, dock, billboard, building, tunnel, landscape, city lighting projects and other public places.
