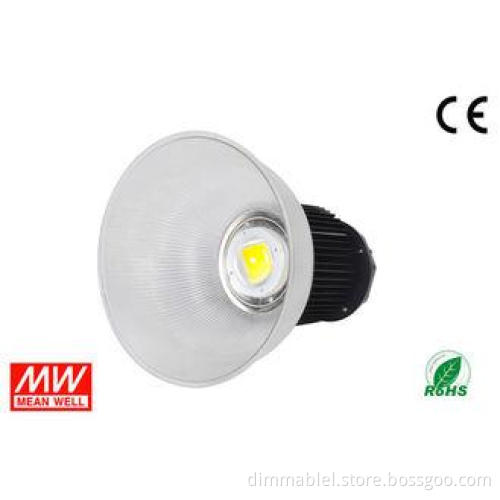

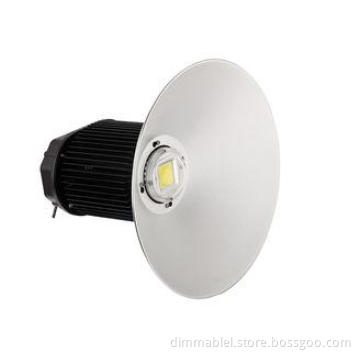

VDE 100W LED high bay lights , Meanwell driver LED high bay
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
VDE 100W LED high bay, 45mil Brigelux, Meanwell driver 10000Lm for workshop light
LED Parameters:
(Item) | Min | Type | Max |
Power | 98 | 100W | 115 W |
Rated Current | 3.0 | 3.2A | 3.5A |
Rated Voltage | 30V | 32 V | 36 V |
Warm white CCT | 2700K | 3200 K | 3900 K |
Pure White CCT | 4000K | 5500 K | 6000 K |
Cool White CCT | 6000K | 6500 K | 7500 K |
Normal Working | 55 ℃ | 55 ℃ | 60 ℃ |
LED Qty of Chips | - | 100PCS | - |
LED luminous Efficiency | 100-110LM/W | ||
Ableled high bay Specification:
Input Voltage | AC85-265V 50-60Hz | ||
Total Harmonic Distortion | ≤ 9 % | ||
Power Factor | ≥0.97 | ||
Power Efficiency | ＞93 % | ||
LED Working Voltage | DC30~36V | ||
The qty of led | 1 pc | ||
Led Consumption | 98 W | ||
System Consumption | 106W | ||
Led Luminous Efficiency | 80-100 Lm /W | ||
Led Initial Flux | 9200 Lm | ||
lamp’s Efficiency | ＞91 % | ||
| 6M | 110 Lux | |
8M | 62 Lux | ||
10M | 40 Lux | ||
| 6M | The irradiation Are is a circular with 16 M | |
8M | The irradiation Are is a circular with 21M | ||
10M | The irradiation Are is a circular with 26M | ||
Illuminance Uniformity | ＞0.6 | ||
Color Temperature | Detail information refer to above LED | ||
Color Rendering Index | Ra≥80 | ||
Light Distribution | symmetric expression / circular light spot | ||
Light Design | LED +The reflectors second light distribution | ||
LED Junction Temperature | ≤80℃ | ||
Working Temperature | -40℃ ~ +55℃ | ||
Storage Temperature | -25℃ ~ +65℃(25℃is the optimal) | ||
IP Grade | IP54 | ||
Net weight | 5.9Kg | ||
Working Life-span | 50000H | ||
Power line | 3x1mm2 VDE cable | ||
Connect wire | Brown | + | |
Blue | - | ||
green | ground | ||
(The color of the lamp shell ) | black & Silver-White | ||
certificate | CE ROHS | ||
Application:
Ableled high bays are widely used in Workshop, warehouse, toll station, gas station, supermarket, gymnasium, exhibition hall, and other public lighting places.
Competitive Advantage:
5years warranty
100W-150W-200W are VDE approved
Less than 3% decay after 5000hrs working
