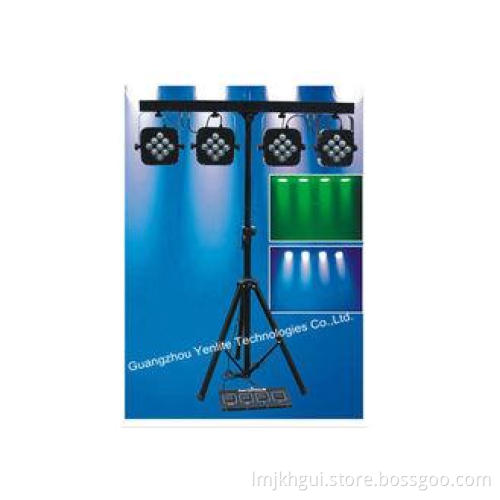

Portable Professional LED Stage Lighting Of 25 Degree DMX Light
Quick Detail:
LED PARBAR 4-Way Kit 9x 3W Tricolor DMX YL-S001
Package include:
4-way DMX PARBAR with 9x 3W Tri-color LEDs
4-pedal foot controller
10m DMX Signal Cable
1m Power Supply Cable
T-Bar Stand (1.8 meter, 2.2 meter is as optional)
Specifications:
|
Model Name: |
LED PARBAR 4-Way Kit 9x 3W Tricolor DMX |
|
Model No.: |
YL-S001 |
|
Power Supply: |
AC110v--240v 50/60Hz |
|
Power consumption: |
120W |
|
Light Source: |
9x3W LEDS (3-in-1)*4 |
|
Beam Angle: |
25 degree |
|
DMX Channels: |
4/15CH |
|
Control mode: |
auto, dmx512, foot controller, master/slave, sound active |
|
Certification |
CE, RoHS |
|
Package Size: |
72x43x27cm |
|
Gross Weight: |
14.5kgs |
Description:
This multi-use foldable lightweight and accessible 4-way DMX PARBAR with 9x 3W Tri-color LEDs makes setup quick and easy, and is perfect for a portable lighting solution.
DMX SET
8 DMX Channels
|
Channel |
Level |
Function |
|
Ch1 |
0-255 |
General-dimmer. Linear intensity adjustment 0-100% |
|
Ch2 |
0-255 |
Linear Strobe frequency adjustment from 1 to 20HZ |
|
Ch3 |
0-50 |
DMX Mode |
|
51-100 |
Step changing Speed from slow to fast |
|
|
101-150 |
Cross fade Speed from slow to fast |
|
|
151-200 |
Strobing Speed from slow to fast |
|
|
201-255 |
Sound active |
|
|
Ch4 |
0-255 |
Auto running Speed from slow to fast |
|
Ch5 |
0-255 |
Red Linear adjustment 0-100% |
|
Ch6
|
0-255 |
Green Linear adjustment 0-100% |
|
Ch7
|
0-255 |
Blue Linear adjustment 0-100% |
|
Ch8
|
0-255 |
White Linear adjustment 0-100% |
