DMX Professional LED Stage Lighting , Parbar 3*15w Quad LED
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

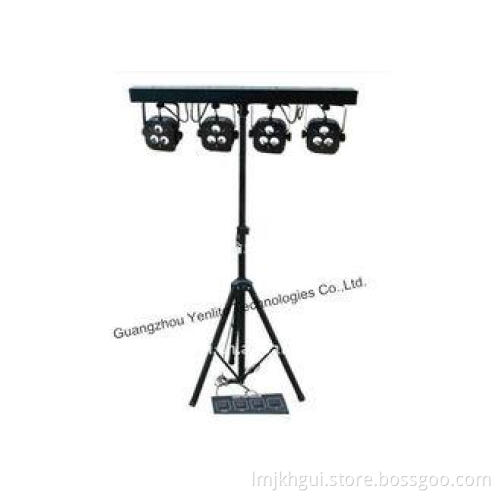

DMX Professional LED Stage Lighting , Parbar 3*15w Quad LEDs
Quick Detail:
PARBAR 4-Way Kit 3x 15W Quad LEDs DMX YL-S003
Package include:
4-way DMX PARBAR with 3X15W 5IN1 LEDs
4-pedal foot controller
10m DMX Signal Cable
1m Power Supply Cable
T-Bar Stand (1.8 meter, 2.2 meter is as optional)
Specifications:
|
Model Name: |
PARBAR 4-Way Kit 3x 15W Quad LEDs DMX |
|
Model No.: |
YL-S003 |
|
Power Supply: |
AC110v--240v 50/60Hz |
|
Power consumption: |
180W |
|
Light Source: |
3x15CWLEDS (5-in-1)*4 (R12, G12, B12, W12, A12) |
|
Beam Angle: |
18, (45, 60 degree is selectable). |
|
DMX Channels: |
6/23 |
|
Control mode: |
auto, dmx512, foot controller, master/slave, sound active |
|
Certification |
CE, RoHS |
|
Package Size: |
100*23*23cm |
|
Gross Weight: |
10kgs |
Description:
This multi-use foldable lightweight and accessible 4-way DMX PARBAR with3x 15W 5-in-1 LEDs makes setup quick and easy, and is perfect for a portable lighting solution. Comes with 4-pedal foot controller and T-bar LED controller.
0-100% linear dimmer, strobe, fade, led display, Pre set 9 kinds of colors,Pre set show0-show12 programme, Quick to assemble& dismantle, Macro function.
DMX SET
8 DMX Channels
|
Channel |
Level |
Function |
|
Ch1 |
0-255 |
General-dimmer. Linear intensity adjustment 0-100% |
|
Ch2 |
0-255 |
Linear Strobe frequency adjustment from 1 to 20HZ |
|
Ch3 |
0-50 |
DMX Mode |
|
51-100 |
Step changing Speed from slow to fast |
|
|
101-150 |
Cross fade Speed from slow to fast |
|
|
151-200 |
Strobing Speed from slow to fast |
|
|
201-255 |
Sound active |
|
|
Ch4 |
0-255 |
Auto running Speed from slow to fast |
|
Ch5 |
0-255 |
Red Linear adjustment 0-100% |
|
Ch6
|
0-255 |
Green Linear adjustment 0-100% |
|
Ch7
|
0-255 |
Blue Linear adjustment 0-100% |
|
Ch8
|
0-255 |
White Linear adjustment 0-100% |
