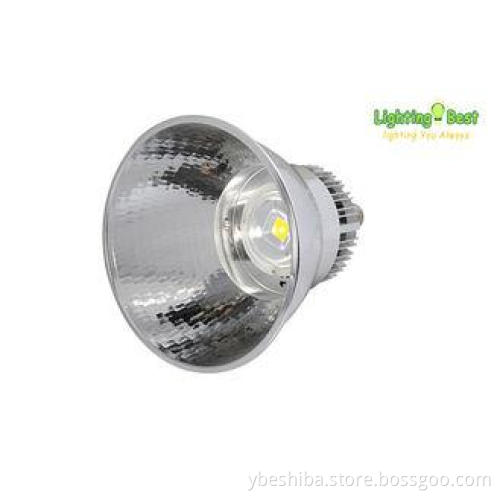

High Light Efficiency Led High Bay E40 Lighting 50W Pure White 3900k - 5000k Bridgelux Chip
Quick Detail:
Led High bay E40
1.High Light Efficiency
2. Pure White 3900-5000K
3.With E40 base
4. Bridgelux LED Chip
5. 3 years warranty
6.Input Voltage: AC85~265V
Specifications:
|
Input Voltage |
AC85V-265V |
|
|
Frequency Range |
50Hz--60Hz |
|
|
Harmonic Distortion |
≤15% |
|
|
power Factor |
＞0.95 |
|
|
Power Efficiency |
＞87% |
|
|
Working Voltage |
DC30-36V |
|
|
led quantity |
1pcs |
|
|
Led Power |
30/40/50W |
|
|
Lamp Total Power |
35W/45W/55W |
|
|
LED Chip |
Epistar or Bridgelux |
|
|
LED luminous efficiency |
90±5lm/w or 100±5lm/w |
|
|
lamp's Efficiency |
＞80% |
|
|
Lighting angle |
30° |
available |
|
|
|
|
|
|
|
|
|
Illuminance Uniformity |
＞0.5 |
|
|
Correlated Color Temperature |
WW |
2700k--3200k |
|
PW |
3900k--5000k |
|
|
CW |
5800k--6200k |
|
|
Color Rendering Index |
WW |
Ra＞70 |
|
PW/CW |
Ra＞75 |
|
|
Light Distribution |
Symmetric /Circular light spot |
|
|
Light Design |
LED + Reflector |
|
|
Working Temperature |
﹣40° ~ +45° C |
|
|
Storage Temperature |
﹣40° ~ +65° C |
|
|
IP Grade |
IP64 |
|
|
Working lifespan |
50.000H |
|
|
Power cable |
0.75mm² trifurcating cable |
|
|
Connect wire |
L Power line |
|
|
N Null line |
||
|
G Earth line |
||
|
Lamp Shell Color |
Black or White |
|
|
Certificate |
CE, ROHS, |
|
|
Structure dimension (mm)
|
Light distribution curve |
|
Applications:
1. Factory workshop, warehouse, toll station, gas station, book store,
2. supermarket, gym, exhibition hall and other places where need lighting
Features:
1, Adopt high bright imported single integrated(COB) LED chip as light source, with good heat dissipation , low light depreciation,high shock or vibration resistance etc.
2, Unique patent heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body’s temperature, ensure the life of LED chip and power driver.
3, The heat sink surface have conducted anodic oxidation anticorrosive process, compact layout and beautiful, corrosion resistant, water proof and dust proof.
4, Apparent energy saving effect, use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.
5. Adopt constant current constant voltage power driver(meanwell driver), apply to wide voltage(AC85V-270V), overcome the problems like unstable and shaky light, sound pollution and generating power grid cause by ballast, avoid eye stimulation and fatigue during the work.
Our advantages:
1. CE & RoHS & IP65 approved, 3 years Quality Guaranteed.
2. OEM & ODM welcome, more than 1 year OEM experience, independent R&D ability, and patent design.
4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
