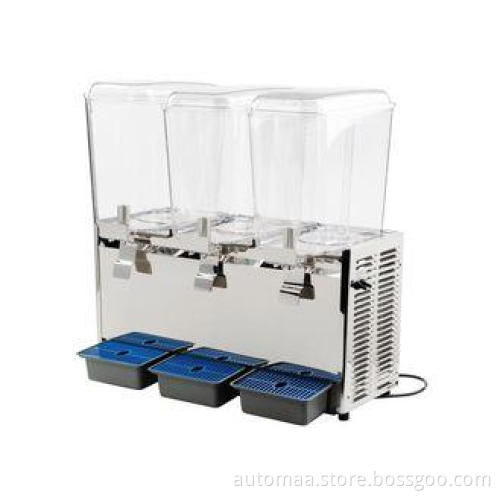

18L Commercial Fruit Juice Dispenser , Spray Cool And Hot D

18L Commercial Fruit Juice Dispenser, Spray Design, Cool And Hot Drink Machine Double Choice

Quick Detail:

Refrigerant:R406/134a 550g

Capacity: 18L*3

Electric current :3.5A

Dimension:702*385*724mm

Packing dimension:978*430*738mm

Description:

1. The juice dispenser machine is cold drink machine.

2. This juice dispenser machine is automatically and intelligently designed.

3. The body of the juice dispenser is made of stainless steel and the two tanks are PC material, to be more

durable and anti-shocking.

4. More different types and color of the juice dispenser, with the circulation methods to be either spraying

form or the mixing style.

5. Easy operation.

6.With the circulation methods to be either spraying form or the agitating style

7.Cold & Hot type

8.Equipped all the outer plate with the stainless steel

9.PC materials of the juice-bowls to be more durable and anti-shocking

Application:

Specification:

Detailed Photo:

Installing Instruction:

1: To install it ,pls choose the site which is flat,fixable and can avoid the direct sunshine in sunmmer.

2:Around the juicer, should have 150mm up room to make the air circulating and make sure the machine

can run effectively.

3:Before installing, pls check the supply whether confirm the requirements or not. The power supply cable is

not too thin or too long. The cross section of cable should be 1.5-2.5mm, Voltage is mounted on the fixed

position with fuse which will keep the users safety,it must have reriable grounding. The socket should be

mounted on the fixed position with fuse which keep the machine running safety.

4;To make the fix position for juicer,should make its frond lower and back higher(to ajust the foot of bottom

can do it), then the water in the salver can flow into the box through the hose.
