Automatic Pipe Welding Rollers For Vessel Turning Of Drive
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

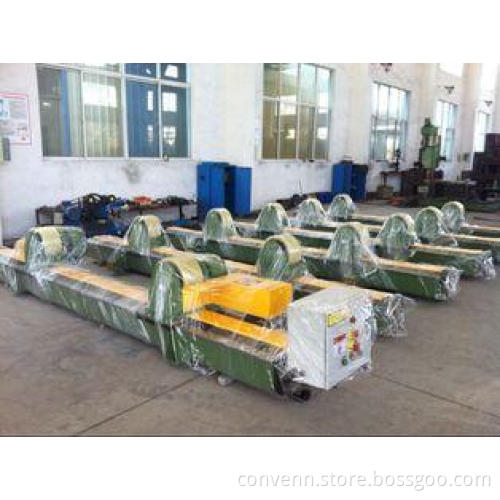

Automatic Pipe Welding Rollers For Vessel Turning Of Drive And Idler Rotator
Quick Details:
Condition:100% brand new
Type:Pipe Welding Rollers
Brand:Sunny
Model number:HGK
Place of origin:Wuxi China(Mainland)
Usage:Welding
Voltage:110V-600V
Color:Blue and Yellow
Kindly Noted:
1. Pipe welding rollers model from 5T-100T, others please confirmed with us.
2. One set of welding rotator include one drive roller and one idler roller, also customer can choose 1 drive and 2 idler etc.
3. Voltage standard is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4. Control panel is wired control ,or you can choose wireless control.
5. If need more special requirements ,we’ll study with our engineer.
6. The revolve adopt A.C. Inverter motor driving.
Description:
The Pipe welding rollers of HGZ series and HGK series designed and manufactured by the company absorbs domestics and overseas advantages of similar products. It is designed and manufactured according to using requirements for pressure vessel manufacturers. The product is applicable for manual welding and automatic welding of metal cylinder. It is featured with advanced technology, reliable quality, easy operation and other advantages.Two groups of roller unit with turn a certain angle are installed on base of drive and idler rotator, two groups of roller unit can turn a certain angle by revolve its mandril, so it can automatic adjusted according to specification of work piece, ensure stable and continuous running of work piece.
Applications:
Pipe welding rollers major used in cylinder welding ,such as Marine,Oil&Gas ; Offshore,Petro Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ; Boiler ; Pipe system&Steel works etc.
Specifications:
|
Type |
Max loading (kg) |
Vessel diameter(mm) |
Dia. and width of the wheel(mm) |
Roller linear velocity(m/h) |
Power of motor(kw) |
Adjustable mode for space |
Way of setting |
|
|
Rubber rollers |
Metal rollers |
|||||||
|
HGK-2 |
2000 |
Φ250-1800 |
Φ200×80 |
2×Φ190×16 |
6-60 |
2×0.18 |
Manual screw adjustment or bolt shift |
AC converter stepless speed adjust
|
|
HGK-5 |
5000 |
Φ250-2300 |
Φ250×100 |
2×Φ240×20 |
2×0.37 |
|||
|
HGK-10 |
10000 |
Φ320-2800 |
Φ300×120 |
2×Φ290×25 |
2×0.55 |
|||
|
HGK-20 |
20000 |
Φ500-3500 |
Φ350×120 |
2×Φ340×30 |
2×1.1 |
|||
|
HGK-40 |
40000 |
Φ600-4200 |
Φ400×120 |
2×Φ390×40 |
2×1.5 |
|||
|
HGK-60 |
60000 |
Φ700-5000 |
Φ450×120 |
2×Φ440×50 |
2×2.2 |
Bolt shift |
||
|
HGK-80 |
80000 |
Φ700-5500 |
Φ500×120 |
2×Φ490×60 |
2×3 |
|||
|
HGK-100 |
100000 |
Φ700-6000 |
Φ500×120 |
2×Φ490×80 |
2×4 |
|||
|
HGK-150 |
150000 |
Φ1000-6000 |
/ |
Φ620×220 |
2×4 |
|||
|
HGK-250 |
250000 |
Φ1000-7500 |
/ |
Φ660×260 |
2×5.5 |
|||
|
HGK-400 |
400000 |
Φ1000-7500 |
/ |
Φ750×320 |
2×7.5 |
|||
|
HGK-500 |
500000 |
Φ1000-8000 |
/ |
Φ750×400 |
2×11 |
|||
Brand using:
﹡Inverter is made in USA Danfoss / Taiwan Delta /Japan Yaskawa
﹡Motor Brand is UK Invertek /Taiwan Qinwei / Chinese brand
﹡Element is made by Schneider /Siemens
﹡Wireless Control box is made by Taiwan by Yuding
﹡Bearing is made by NTN / Harbin
Competitive Advantage:
1. All the bolt using 12.9 grade Bolt , not using 8.4 grade. Making the machine more stronger.
2. 20 % overweight design , could making the rotator focus more.
3. Double motors and reducers , and if the workpiece stress is different ,could ensure the rotator working properly, and longer service life.
4. Double row wheels ,not only making the wheels stable, but also artifacts to increase friction.
5. All the parts using well-known brands in China or other countries . Quality is more reliable .
6. Using double row bearings.
Why always Sunny?
360°guarantee makes ordering risk free.
20 years welding machine manufacture experiences.
one-stop service of welding.
OEM service.
Quickly feedback for your problems.
