Power failure alarm Disconnection alarm Power failure alarm

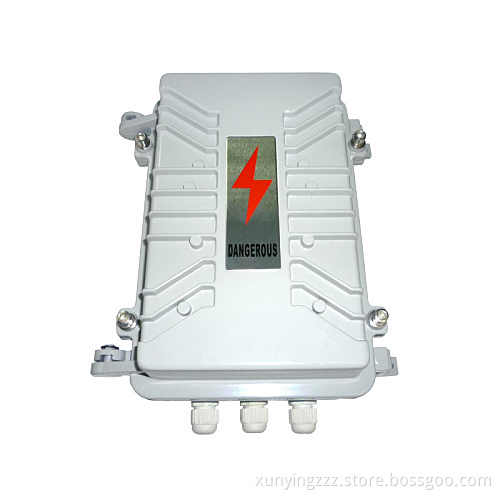

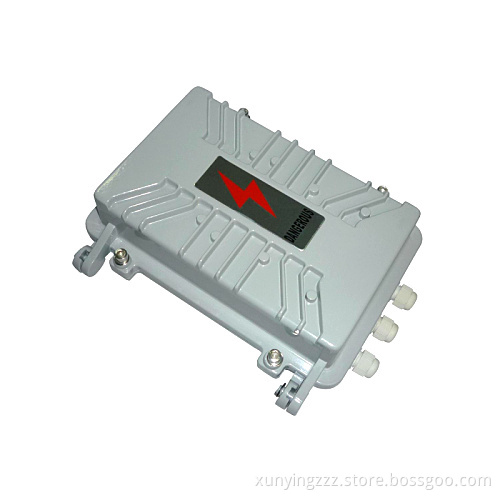

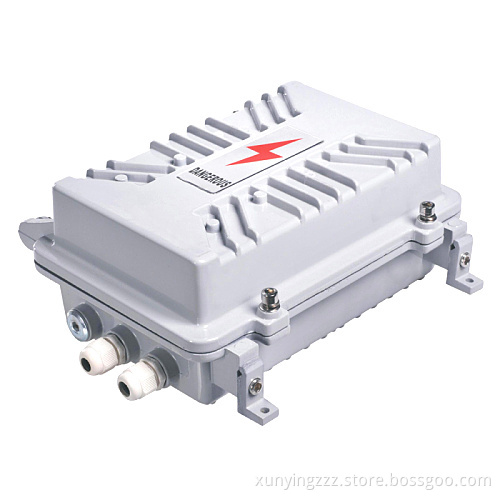

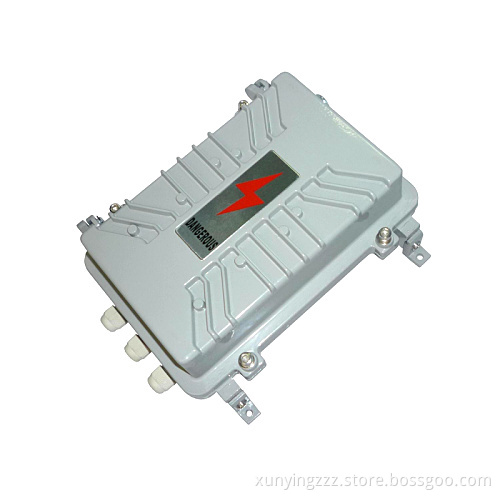

Product Name: Transformers burglar alarm G30 type
Category: GSM burglar alarm transformer
Product Type: G30



Features:
1. GSM short message data transmission mode
2. Voice platform to complete the smart alarm remote data transmission
3. Distribution network power lines, transformers and other power equipment and line anti-cut, anti-theft, anti-sabotage
4. Fully sealed aluminum die-cast housing, waterproof performance 5. Functional and practical, high quality, stable and reliable, adapt to the wild variety of environments
6. Alarm center network use




Technical parameters:
1. Communication: industrial grade 900 / 1800MHz GSM module
2. Alarm: GSM Chinese SMS and voice dialing
3. Alarm Response Time: ≤8 seconds (GSM network signal is normal)
4. Standby power consumption: ≤0.6W
5. Siren volume: more than 110 db
6. Grid connection mode: Y-shaped, three-phase four-wire system
Single-phase rated working voltage: AC220V
Single-phase minimum operating voltage: AC110V
Single-phase maximum working voltage: AC270V
7. The maximum capacity of the fuse: 5A
8. Backup battery: DC12V / 1.2AH (lead-acid batteries)
DC12V / 1AH (NiMH batteries) Optional
Battery voltage warning: DC10.5V
Battery voltage is automatically turned off: DC10V
9. EMI: IEC55022
10. Insulation Class: B Class
11. Protection: IP55
12. Working environment: Temperature -20 ℃ ~ + 55 ℃
Humidity ≤95% non-condensing
13. Appearance: cast aluminum, sealed
14. Size: 220 × 150 × 105 (mm)



Alarm type:
(1) host tamper alarm:
(2) vibration alarm host;
(3) the power of single-phase, two-phase, three-phase fault alarm;
(4) transformer vibration alarm;
(5) transformer move level alarm;
(6) other detector alarm;



Weight: 2.6kg
Support ODM / OEM
