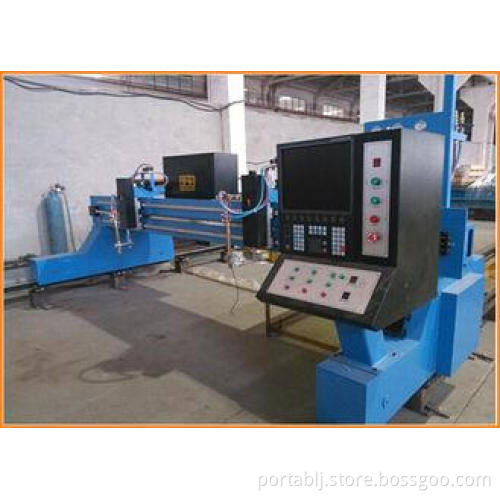

Automatic THC Cnc Plasma Gantry Cutting Machine , High Cutting Speed
This cutter adopts gantry structure, its cross beam have many specifications, both of them adopt dual drive and lineal guide. Torch quantity is optional according to users demands, also can be configured as abnormity cutting and strip cutting.And plasma source can choose.
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other
non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile,
shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
4) Specifications:
|
Cutting method |
plasma/flame |
|
Cutting size |
1500*3000mm |
|
lifting travel |
≤100mm |
|
Height control |
Automatic THC/Capacitive THC |
|
Max idle speed Cutting speed |
18000mm/min 0-15000 mm/min(according to the thickness of material) |
|
Running accuracy |
Plasma≤0.005mm flame≤0.1mm |
|
Cutting thickness |
Plasma≤20mm flame≤150mm |
|
Plasma cutting gas |
air |
|
Flame cutting gas |
Oxygen + ethyne |
|
Gas pressure |
0.4-0.5Mpa for normal plasma power |
|
Power |
220V/380V 50HZ(we suggest 63A,120A,160A ,200A) |
|
No. of cutting torch and nozzle |
One set of plasma cutting torch, One set of flame cutting torch,10pcs nozzle |
|
Nesting software |
Starcam(Optional:Fastcam) |
|
Packing size |
450*750*4300,1900*950*1000mm |
Warranty period is one year. Provide longtime free technical advisory services and Provide free technology consulting services During warranty period, free maintenance and technical support can be provided. (Except man-made major damages or damages arising from irresistible natural factors .
