rubber abrasion resistance Rubber testing machine of DIN ab
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Quick Details
|
Name |
DIN abrasive tester |
|
Usage |
test the friction of surface of rubber , tire, conveyor belt, shoe sole, synthetic leather |
|
Power |
1∮,AC220V,3A |
|
Weight |
61kg |
|
Volume |
70×30×30cm |
2. Description

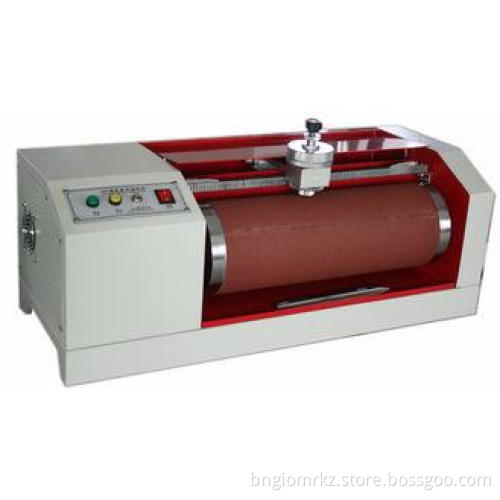

The main function of Rubber testing machine of DIN abrasive tester for rubber abrasion resistance is to test the friction of surface by a particular piece of sandpaper, After friction for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of materials.
3. Features
1. Testing result is accurate
2. Structure is simple and easy to operate
3. Made according to related corresponding international standard.
4. Able to custom according to customer’s specific requirement.
4. Specifications
|
Model |
GX-5028 |
|
Specimen size |
dia 16mm, thickness at least 6mm |
|
Specimen load |
10N± 0.2N. |
|
Load of fixture |
2.5N |
|
Load of weight |
2.5N, 5N |
|
Diameter of the wear wheel |
dia 150mm |
|
Length of the wear wheel |
460mm |
|
Speed of wear wheel |
40 ±1RPM. |
|
Testing length |
40M (about 84 rotate) |
|
Speed of abrasive |
0.32m/sec |
|
Horizontal displacement |
4.2mm / rotate |
|
Wheel speed |
40 ± 1RPM |
|
Additional function |
Automatic recording and memory |
