Ductile Iron Wafer Type Butterfly Valve Pneumatic With EPDM
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Tianjin,China |
|---|

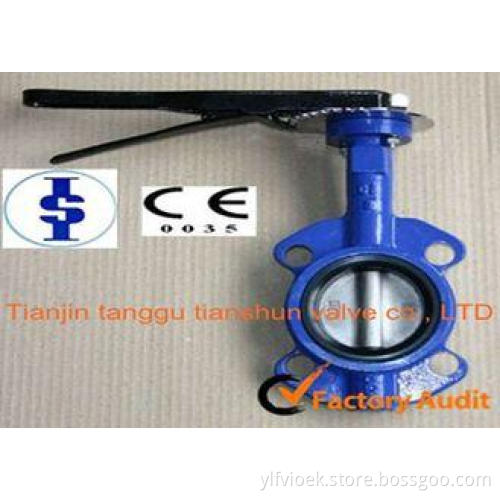

Ductile Iron Wafer Type Butterfly Valve Pneumatic With EPDM / NBR / PTFE Seat
Description:
1. Body:cast iron/ductile iron/stainless steel/carbon steel
2. Disc:ductile iron/cf8/cf8m/wcb
3. Pin:ss410/ss416/ss304/ss316
4. Seat:EPDM/NBR/PTFE
5. Stem:ss410/ss416/ss304/ss316
6. Bushing:PTFE/LUBRICATING
7. O-ring:EPDM/NBR
8 .ISO9001,CE.
9. Stable torque.
10. Sample and compact construction.
11. No leakage.
Specifications:
|
Name |
DN50-DN300 Cast iron PN10/16/25 wafer type butterfly valve |
|
Design standard |
EN593 ,API609 , MSSSP67 |
|
Face to face |
API609 . BS5155 , ISO5752 Series20. |
|
Tubing flange |
BS/ DIN / ANSI/ JIS / ASE / ASD / BS10D / BS10E / UNI |
|
Inspection and test |
API598 , ISO5208-1982 |
|
Drving style |
Lever , gear , actuator , pneumatic |
Company profile:
Tianjin Tanggu Tianshun Valve Co., Ltd established in 1993,specialised in valves about 19 years.We have advanced equipment and guarantee that all the products will keep in good repair in 1 year , 30000 times on/off without leakage under normal use , During the guarantee period , we will take all the responsibility of the losing which is caused by our quality problem.
Certificate:
We have held the certificates of ISO 9001, SAI Global Watermark, ABS (Design Assessment Certificates), API 6D, CE/PED for many years and view the ISO 9001 as the minimum standard to maintain.
